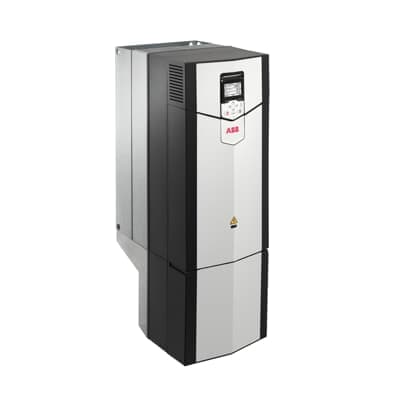

ACS880-01-156A-5
Product ID:92868
Updated: 2026/4/3
Key Features
- 1Control and monitor seamlessly via the Assistant Panel's Bluetooth interface. 2、Ensure maximum reliability and long lifetime with a robust design. 3、Meet safety standards with standard STO and optional extended safety modules. 4、Enable fast drive replacement via flange mounting and a removable memory unit. 5、Support speed, torque, and position control with adaptive programming standard.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 55 kg | Product Net Depth / Length | 365 mm |
| Product Net Height | 880 mm | Product Net Width | 284 mm |
| Package Level 1 Depth / Length | 970 mm | Package Level 1 Height | 600 mm |
| Package Level 1 Width | 380 mm | Package Level 1 Units | 1 carton |
| Number of Phases | 3 | Degree of Protection | IP21 |
| Enclosure Type NEMA | Type1 | Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R7 | Input Voltage (Uin) | 380 ⦠500 V |
| Mounting Type | Wall-mounted_NO UNIT$ | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 124 A |
| Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 148 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 156 A |
| Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 75 kW | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 90 kW |
| Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 90 kW | Efficiency Level | IE2 |
| UNSPSC | 39122001 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Product Name | Frequency Converter | Manufacturer ID | 3ABD00037857-D |
Specifications may be subject to change without notice
