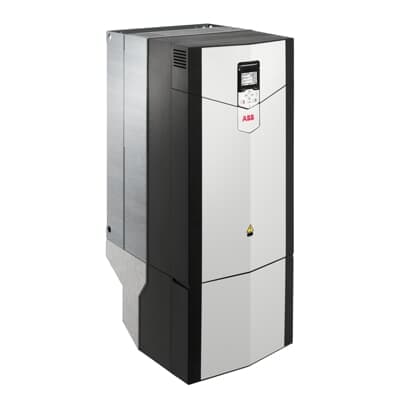

ACS880-01-271A-7
Product ID:70432
Updated: 2026/7/14
Key Features
- 1Handle high power up to 250 kW and 271 A.
- 2Enhance safety with built-in Direct Torque Control.
- 3Configure settings easily via Bluetooth Assistant.
- 4Save space with a compact wall-mounted design.
- 5Ensure reliability with a robust 2-year warranty.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 98 kg | Product Net Depth / Length | 413 mm |
| Product Net Height | 955 mm | Product Net Width | 380 mm |
| Package Level 1 Depth / Length | 1160 mm | Package Level 1 Height | 650 mm |
| Package Level 1 Width | 490 mm | Package Level 1 Units | 1 carton |
| Number of Phases | 3 | Degree of Protection | IP21 |
| Enclosure Type NEMA | Type1 | Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R9 | Input Voltage (Uin) | 525 ⦠690 V |
| Mounting Type | Wall-mounted_NO UNIT$ | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 210 A |
| Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 257 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 271 A |
| Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 200 kW | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 250 kW |
| Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 250 kW | Efficiency Level | IE2 |
| UNSPSC | 39122001 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Product Name | Frequency Converter | Manufacturer ID | 3ABD00039256-D |
Specifications may be subject to change without notice
