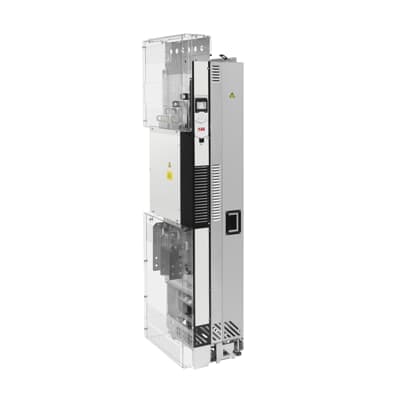

ACS880-04-721A-7
Product ID:88993
Updated: 2026/7/15
Key Features
- 1Deliver high power from 275 to 2500 HP for demanding applications.
- 2Utilize Direct Torque Control for precise speed and torque.
- 3Enhance efficiency with built-in harmonic filtering and regeneration.
- 4Ensure global compliance with CE, UL, cUL, CSA, marine, and ATEX.
- 5Maximize reliability with coated boards and nine-year maintenance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 199 kg | Product Net Depth / Length | 506 mm |
| Product Net Height | 1741 mm | Product Net Width | 350 mm |
| Package Level 1 Depth / Length | 2050 mm | Package Level 1 Height | 690 mm |
| Package Level 1 Width | 645 mm | Package Level 1 Units | 1 carton |
| Number of Phases | 3 | Degree of Protection | IP20 |
| Enclosure Type NEMA | Open Type | Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R11 | Input Voltage (Uin) | 525 ⦠690 V |
| Mounting Type | Module_NO UNIT$ | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 571 A |
| Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 705 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 721 A |
| Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 560 kW | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 630 kW |
| Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 710 kW | Efficiency Level | IE2 |
| UNSPSC | 39122001 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Product Name | Frequency Converter | Manufacturer ID | 3ABD00039571-D |
Specifications may be subject to change without notice
