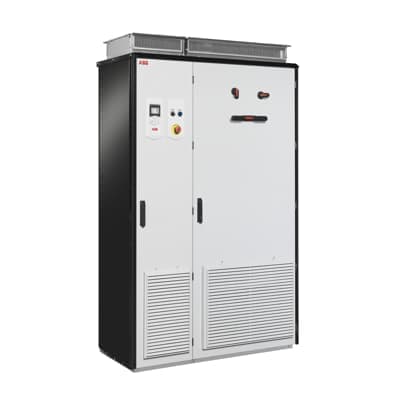

ACS880-17-2060A-3
Product ID:71070
Updated: 2026/4/3
Key Features
- 1Capture and reuse braking energy to cut waste and boost efficiency. 2、Simplify installation with an all-in-one regenerative drive solution. 3、Return braking energy to the grid, lowering costs versus traditional methods. 4、Integrate seamlessly with virtually all processes and automation systems. 5、Support various motors and industries with global approvals and certifications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 2930 kg 6460 lb | Product Net Depth / Length | 738 mm 29.055 in |
| Product Net Height | 2145 mm 84.449 in | Product Net Width | 3230 mm 127.165 in |
| Package Level 1 Depth / Length | 1100 mm 43.307 in | Package Level 1 Height | 2376 mm 93.543 in |
| Package Level 1 Width | 3944 mm 155.276 in | Number of Phases | 3 |
| Degree of Protection | IP22 | Enclosure Type NEMA | Type1 |
| Altitude | 1000 m | Operating Humidity (RH<span style="font-size:x-small;">amb</span>) | 5 ... 95 |
| Power Factor | 1 | Sound dB (A) | 78 dB(A) |
| Multiple Battery Information | Lithium Coin, BR2032, 2pcs, 3V, 200mAh, 3g | Frequency (f) | 48 ... 63 Hz |
| Frame Size | 3xR8i+3xR8i | Input Voltage (Uin) | 380 ... 415 V |
| Communication Protocol | CAN DeviceNet EtherNet/IP MODBUS Other Bus Systems PROFIsafe PROFIBUS PROFINET IO TCP/IP | Number of Hardware Interfaces | Industrial Ethernet 0 Parallel 0 PROFINET 0 RS-232 0 RS-422 0 RS-485 1 Serial TTY 0 USB 1 |
| Includes | Control unit PC connection | Analog Inputs | 4 |
| Analog Outputs | 4 | Number of Digital In/Outputs | 14 / 10 |
| Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 1541 A | Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 1978 A |
| Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 2060 A | Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 800 kW |
| Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 1100 kW | Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 1200 kW |
| Ecodesign Exemption | Energy efficiency data is not provided for the drive. The regenerative drives are exempt from the EU ecodesign requirements (Regulation EU/2019/1781, §2.3.c). | UNSPSC | 39122001 |
| SCIP | 944D8A5E-036D-404E-9036-0D3C1EA703AD Finland (FI) | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Product Name | Frequency converter | Manufacturer ID | 3AXD50000145775 |
Specifications may be subject to change without notice
