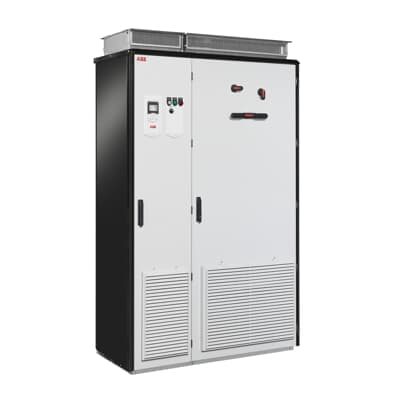

ACS880-37-0870A-3
Product ID:70022
Updated: 2026/4/3
Key Features
- 1Produce exceptionally low harmonic content without external filters. 2、Achieve unity power factor for efficient energy usage. 3、Feature a compact design for easy cabinet assembly and maintenance. 4、Offer IP22, IP42, and IP54 enclosure class options. 5、Serve industries like oil and gas, mining, and water treatment.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 1180 kg 2601 lb | Product Net Depth / Length | 698 mm 27.48 in |
| Product Net Height | 2145 mm 84.45 in | Product Net Width | 1230 mm 48.43 in |
| Package Level 1 Depth / Length | 1100 mm 43.31 in | Package Level 1 Height | 2373 mm 93.43 in |
| Package Level 1 Width | 1444 mm 56.85 in | Number of Phases | 3 |
| Degree of Protection | IP22 | Enclosure Type NEMA | Type1 |
| Altitude | 1000 m | Operating Humidity (RH<span style="font-size:x-small;">amb</span>) | 5 ... 95 |
| Power Factor | 1 | Sound dB (A) | 75 dB(A) |
| Multiple Battery Information | Lithium Coin, BR2032, 2pcs, 3V, 200mAh, 3g | Frequency (f) | 48 ... 63 Hz |
| Frame Size | R8i+R8i | Input Voltage (Uin) | 380 ... 415 V |
| Communication Protocol | CAN DeviceNet EtherNet/IP MODBUS Other Bus Systems PROFIsafe PROFIBUS PROFINET IO TCP/IP | Number of Hardware Interfaces | Industrial Ethernet 0 Parallel 0 PROFINET 0 RS-232 0 RS-422 0 RS-485 1 Serial TTY 0 USB 1 |
| Includes | Control unit PC connection | Analog Inputs | 4 |
| Analog Outputs | 4 | Number of Digital In/Outputs | 14 / 10 |
| Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 651 A | Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 835 A |
| Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 870 A | Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 355 kW |
| Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 450 kW | Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 500 kW |
| Ecodesign Exemption | Energy efficiency data is not provided for the drive. The low-harmonic drives are exempt from the EU ecodesign requirements (Regulation EU/2019/1781, §2.3.d). | UNSPSC | 39122001 |
| SCIP | D120819E-0189-4843-AC99-32CD7FCA0F64 Finland (FI) | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Product Name | Frequency converter | Manufacturer ID | 3AUA0000170261 |
Specifications may be subject to change without notice
