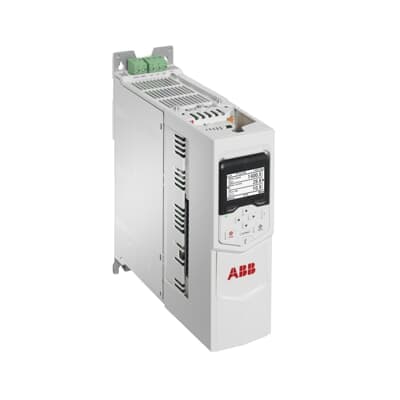

ACS880-M04-014A-5
Product ID:90298
Updated: 2026/7/15
Key Features
- 1Achieve highly accurate motor torque and speed control with Direct Torque Control (DTC).
- 2Simplify configuration and enhance safety with built-in Safe Torque Off (STO).
- 3Monitor and save energy using the integrated energy optimizer and efficiency information.
- 4Operate seamlessly with an easy-to-use Bluetooth control panel and keypad.
- 5Adapt installation and commissioning via three customizable option slots.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 5.6 kg 12.3 lb | Product Net Depth / Length | 234 mm 9.21 in |
| Product Net Height | 476 mm 18.74 in | Product Net Width | 100 mm 3.94 in |
| Package Level 1 Depth / Length | 450 mm 17.72 in | Package Level 1 Height | 360 mm 14.17 in |
| Package Level 1 Width | 200 mm 7.87 in | Package Level 1 Units | 1 carton |
| Number of Phases | 3 | Degree of Protection | IP20 |
| Enclosure Type NEMA | Open Type | Altitude | 1000 m |
| Operating Humidity (RH<span style="font-size:x-small;">amb</span>) | 5 ... 95 | Power Factor | 0.98 |
| Sound dB (A) | 39 dB(A) | Multiple Battery Information | Lithium Coin, CR2032, 220 mAh, 3 V, 2 pcs, 6 g |
| Frequency (f) | 47.5 ... 63 Hz | Frame Size | R2 |
| Input Voltage (Uin) | 380 ... 500 V | Mounting Type | Module |
| Communication Protocol | CAN DeviceNet EtherNet/IP MODBUS Other Bus Systems PROFIsafe PROFIBUS PROFINET IO TCP/IP | Number of Hardware Interfaces | Industrial Ethernet 0 Other 3 Parallel 0 PROFINET 0 RS-232 0 RS-422 0 RS-485 1 Serial TTY 0 USB 0 |
| Includes | PC connection | Analog Inputs | 2 |
| Analog Outputs | 2 | Number of Digital In/Outputs | 6 / 5 |
| Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 11 A | Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 13 A |
| Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 14 A | Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 5.5 kW |
| Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 5.5 kW | Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 5.5 kW |
| Apparent Power Output | 9.7 kV·A | Efficiency Level | IE2 |
| Standby Loss | 32 W | Temperature Rating | Maximum 40 °C |
| Output Current, Heavy-Duty Use (UL) | 11 A | Output Current, Light-Overload Use (UL) | 13 A |
| Output Power, Heavy-Duty Use (UL) | 7.5 Hp | Output Power, Light-Overload Use (UL) | 7.5 Hp |
| UNSPSC | 39122001 | SCIP | e551ec43-3ae3-4814-b2e4-9b0cbea5e237 Finland (FI) |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Product Name | Frequency converter |
| Manufacturer ID | 3AXD50000036406 |
Specifications may be subject to change without notice
