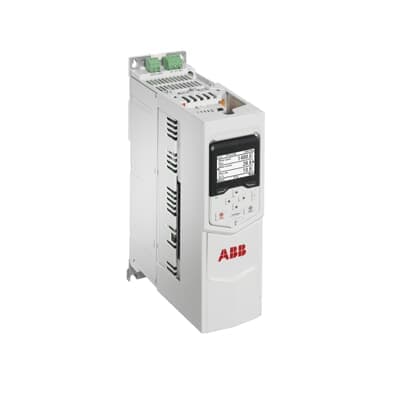

ACS880-M04-03A6-2
Product ID:91579
Updated: 2026/7/14
Key Features
- 1Deliver high-performance variable speed and torque control for demanding applications.
- 2Enhance safety with built-in Safe Torque Off (STO) and optional safety modules.
- 3Adapt installation using four frame sizes and three option slots.
- 4Operate across a wide 200-240Vac input voltage range for versatility.
- 5Simplify commissioning with integrated diagnostics and PC tools.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 3.4 kg 7.5 lb | Product Net Depth / Length | 157 mm 6.18 in |
| Product Net Height | 474 mm 18.66 in | Product Net Width | 90 mm 3.54 in |
| Package Level 1 Depth / Length | 430 mm 16.93 in | Package Level 1 Height | 280 mm 11.02 in |
| Package Level 1 Width | 190 mm 7.48 in | Package Level 1 Units | 1 carton |
| Number of Phases | 3 | Degree of Protection | IP20 |
| Enclosure Type NEMA | Open Type | Altitude | 1000 m |
| Operating Humidity (RH<span style="font-size:x-small;">amb</span>) | 5 ... 95 | Power Factor | 0.98 |
| Sound dB (A) | 47 dB(A) | Multiple Battery Information | Lithium Coin, CR2032, 220 mAh, 3 V, 2 pcs, 6 g |
| Frequency (f) | 47.5 ... 63 Hz | Frame Size | R1 |
| Input Voltage (Uin) | 200 ... 240 V | Mounting Type | Module |
| Communication Protocol | CAN DeviceNet EtherNet/IP MODBUS Other Bus Systems PROFIsafe PROFIBUS PROFINET IO TCP/IP | Number of Hardware Interfaces | Industrial Ethernet 0 Other 3 Parallel 0 PROFINET 0 RS-232 0 RS-422 0 RS-485 1 Serial TTY 0 USB 0 |
| Includes | PC connection | Analog Inputs | 2 |
| Analog Outputs | 2 | Number of Digital In/Outputs | 6 / 5 |
| Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 3 A | Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 3.4 A |
| Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 3.6 A | Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 0.37 kW |
| Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 0.55 kW | Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 0.55 kW |
| Apparent Power Output | 1.4 kV·A | Efficiency Level | IE2 |
| Standby Loss | 28 W | Temperature Rating | Maximum 40 °C |
| Output Current, Heavy-Duty Use (UL) | 3 A | Output Current, Light-Overload Use (UL) | 3.4 A |
| Output Power, Heavy-Duty Use (UL) | 0.5 Hp | Output Power, Light-Overload Use (UL) | 0.75 Hp |
| UNSPSC | 39122001 | SCIP | 8a7e10d7-3960-4da3-8cd8-3a7488ee171b Finland (FI) |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Product Name | Frequency converter |
| Manufacturer ID | 3AXD50000036385 |
Specifications may be subject to change without notice
