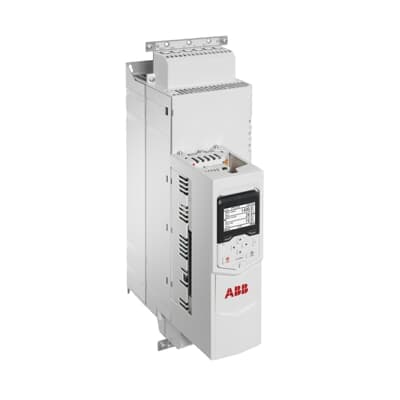

ACS880-M04-050A-5
Product ID:72106
Updated: 2026/7/14
Key Features
- 1Utilize Direct Torque Control (DTC) for high motor speed accuracy.
- 2Enhance safety with built-in Safe Torque Off (STO) function.
- 3Select from four frame sizes and three option slots for flexible installation.
- 4Operate across a wide power range from 0.37kW to 45kW.
- 5Integrate seamlessly with major automation networks for unified control.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 15.8 kg 34.8 lb | Product Net Depth / Length | 235 mm 9.25 in |
| Product Net Height | 658 mm 25.91 in | Product Net Width | 165 mm 6.50 in |
| Package Level 1 Depth / Length | 700 mm 27.56 in | Package Level 1 Height | 360 mm 14.17 in |
| Package Level 1 Width | 260 mm 10.24 in | Package Level 1 Units | 1 carton |
| Number of Phases | 3 | Degree of Protection | IP20 |
| Enclosure Type NEMA | Open Type | Altitude | 1000 m |
| Operating Humidity (RH<span style="font-size:x-small;">amb</span>) | 5 ... 95 | Power Factor | 0.98 |
| Sound dB (A) | 71 dB(A) | Multiple Battery Information | Lithium Coin, CR2032, 220 mAh, 3 V, 2 pcs, 6 g |
| Frequency (f) | 47.5 ... 63 Hz | Frame Size | R3 |
| Input Voltage (Uin) | 380 ... 500 V | Mounting Type | Module |
| Communication Protocol | CAN DeviceNet EtherNet/IP MODBUS Other Bus Systems PROFIsafe PROFIBUS PROFINET IO TCP/IP | Number of Hardware Interfaces | Industrial Ethernet 0 Other 3 Parallel 0 PROFINET 0 RS-232 0 RS-422 0 RS-485 1 Serial TTY 0 USB 0 |
| Includes | PC connection | Analog Inputs | 2 |
| Analog Outputs | 2 | Number of Digital In/Outputs | 6 / 5 |
| Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 44 A | Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 46 A |
| Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 50 A | Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 22 kW |
| Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 22 kW | Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 22 kW |
| Apparent Power Output | 35 kV·A | Efficiency Level | IE2 |
| Standby Loss | 34 W | Temperature Rating | Maximum 40 °C |
| Output Current, Heavy-Duty Use (UL) | 44 A | Output Current, Light-Overload Use (UL) | 46 A |
| Output Power, Heavy-Duty Use (UL) | 30 Hp | Output Power, Light-Overload Use (UL) | 30 Hp |
| UNSPSC | 39122001 | SCIP | 056afa37-4c9d-45a8-b6fa-8011be013b84 Finland (FI) |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) | Product Name | Frequency converter |
| Manufacturer ID | 3AXD50000036412 |
Specifications may be subject to change without notice
