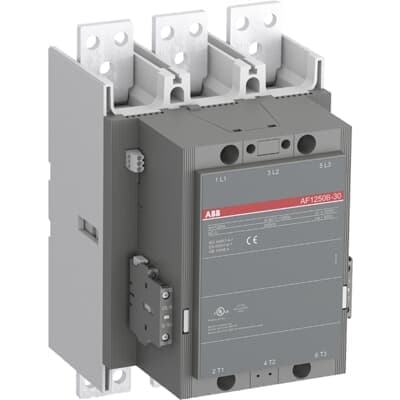

AF1250B-30-22-70
Product ID:87396
Updated: 2026/4/4
Key Features
- 1Operate with a wide 100-250 VAC/VDC control voltage range. 2、Ensure reliable operation with built-in surge suppression. 3、Utilize for isolation, bypass, and distribution up to 1000V. 4、Reduce panel energy consumption via electronic coil interface. 5、Deploy in various environments with IP00/IP20 enclosure.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 210 mm | Product Net Depth / Length | 242 mm |
| Product Net Height | 344 mm | Product Net Weight | 14.6 kg |
| Coil Consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 12 V·A Pull-in at Max. Rated Control Circuit Voltage 50 Hz 880 V·A | Ambient Air Temperature | Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C Close to Contactor for Storage -40 ... 70 °C |
| Object Classification Code | Q | ETIM 7 | EC000066 - Power contactor, AC switching |
| ETIM 8 | EC000066 - Power contactor, AC switching | ETIM 9 | EC000066 - Power contactor, AC switching |
| eClass | V11.0 : 27371003 | UNSPSC | 39121529 |
| Manufacturer ID | 1SFL647063R7022 |
Specifications may be subject to change without notice
