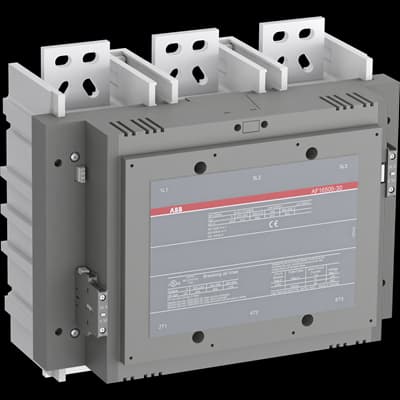

AF1650B-30-22-70
Product ID:83219
Updated: 2026/7/15
Key Features
- 1Handle high power up to 1000 HP at 575/600V 3Ph.
- 2Operate with a wide control voltage range from 100-250 V AC/DC.
- 3Ensure reliability with built-in surge suppression for unstable networks.
- 4Save panel space using a compact, energy-efficient design.
- 5Simplify installation with pre-mounted auxiliary contacts and main circuit bars.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 438 mm | Product Net Depth / Length | 244 mm |
| Product Net Height | 392 mm | Product Net Weight | 33 kg |
| Coil Consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 48 V·A Pull-in at Max. Rated Control Circuit Voltage 50 Hz 2450 V·A | Ambient Air Temperature | Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C Close to Contactor for Storage -40 ... 70 °C |
| Object Classification Code | Q | ETIM 7 | EC000066 - Power contactor, AC switching |
| ETIM 8 | EC000066 - Power contactor, AC switching | ETIM 9 | EC000066 - Power contactor, AC switching |
| eClass | V11.0 : 27371003 | UNSPSC | 39121529 |
| Manufacturer ID | 1SFL677063R7022 |
Specifications may be subject to change without notice
