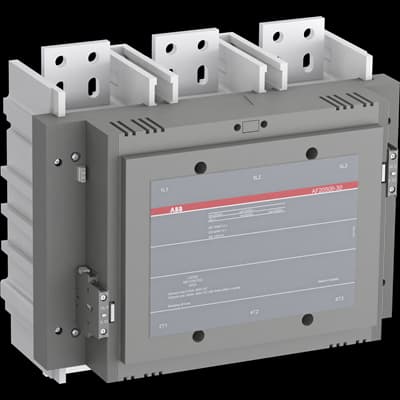

AF2050B-30-22-70
Product ID:83986
Updated: 2026/6/10
Key Features
- 1Utilize a wide control voltage range (100-250 VAC/VDC) for versatile applications.
- 2Access compact design with accessible coil terminals for easy maintenance.
- 3Ensure reliable operation in unstable networks with robust surge protection.
- 4Save setup time with pre-mounted auxiliary contacts and main circuit bars.
- 5Achieve long-lasting performance with high operational cycles (500,000).
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 438 mm | Product Net Depth / Length | 244 mm |
| Product Net Height | 392 mm | Product Net Weight | 33 kg |
| Coil Consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 48 V·A Pull-in at Max. Rated Control Circuit Voltage 50 Hz 2450 V·A | Ambient Air Temperature | Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C Close to Contactor for Storage -40 ... 70 °C |
| Object Classification Code | Q | ETIM 7 | EC000066 - Power contactor, AC switching |
| ETIM 8 | EC000066 - Power contactor, AC switching | ETIM 9 | EC000066 - Power contactor, AC switching |
| eClass | V11.0 : 27371003 | UNSPSC | 39121529 |
| Manufacturer ID | 1SFL707063R7022 |
Specifications may be subject to change without notice
