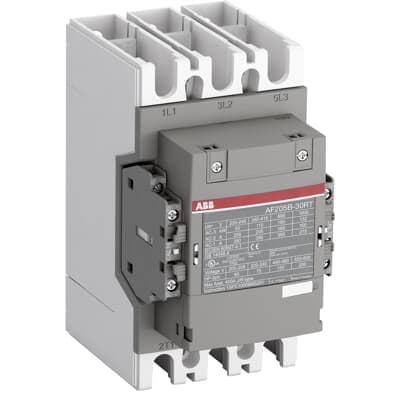

AF205B-30-22RT-14
Product ID:90599
Updated: 2026/4/3
Key Features
- 1Operate with control voltages from 24-60 V AC and 20-60 V DC. 2、Ideal for railway applications due to compact dimensions. 3、Equip with ring-tongue terminals for secure and efficient connections. 4、Suitable for motor starting, isolation, bypass, and distribution applications up to 1000 V. 5、Built with durable materials to withstand frequent switching operations.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 105 mm | Product Net Depth / Length | 152 mm |
| Product Net Height | 196 mm | Product Net Weight | 2.4 kg |
| Number of Main Contacts NO | 3 | Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 2 | Number of Auxiliary Contacts NC | 2 |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1, IEC 60077-1 (applicable parts), IEC 60077-2 (applicable parts), EN 50155 (applicable parts), TR CU 001/2011, IEC 61373, For compliance confirmation on applicable parts based on your application and combination, please consult your ABB sales representatives. | Rated Operational Voltage | Main Circuit 1000 V |
| Rated Operational Current AC-1 (Ie) | (1000 V) 40 °C 275 A (1000 V) 60 °C 250 A (1000 V) 70 °C 200 A (690 V) 40 °C 350 A (690 V) 60 °C 300 A (690 V) 70 °C 240 A | Rated Operational Current AC-3 (Ie) | (415 V) 55 °C 205 A (440 V) 55 °C 205 A (500 V) 55 °C 165 A (690 V) 55 °C 165 A (1000 V) 55 °C 100 A (380 / 400 V) 55 °C 205 A (220 / 230 / 240 V) 55 °C 205 A |
| Rated Operational Power AC-3 (Pe) | (415 V) 110 kW (440 V) 132 kW (500 V) 110 kW (690 V) 160 kW (1000 V) 132 kW (380 / 400 V) 110 kW (220 / 230 / 240 V) 55 kW | Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 1640 A at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 350 A at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 670 A at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 2050 A at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 947 A |
| Rated Operational Current DC-1 (Ie) | (100 V) 1 Pole, 40 °C 350 A (100 V) 1 Pole, 60 °C 300 A (100 V) 1 Pole, 70 °C 240 A (110 V) 2 Poles in Series, 40 °C 350 A (110 V) 2 Poles in Series, 60 °C 300 A (110 V) 2 Poles in Series, 70 °C 240 A (110 V) 3 Poles in Series, 40 °C 350 A (110 V) 3 Poles in Series, 60 °C 300 A (110 V) 3 Poles in Series, 70 °C 240 A (175 V) 2 Poles in Series, 40 °C 350 A (175 V) 2 Poles in Series, 60 °C 300 A (175 V) 2 Poles in Series, 70 °C 240 A (200 V) 2 Poles in Series, 40 °C 350 A (200 V) 2 Poles in Series, 60 °C 300 A (200 V) 2 Poles in Series, 70 °C 240 A (220 V) 3 Poles in Series, 40 °C 350 A (220 V) 3 Poles in Series, 60 °C 300 A (220 V) 3 Poles in Series, 70 °C 240 A (260 V) 3 Poles in Series, 40 °C 350 A (260 V) 3 Poles in Series, 60 °C 300 A (260 V) 3 Poles in Series, 70 °C 240 A (300 V) 3 Poles in Series, 40 °C 350 A (300 V) 3 Poles in Series, 60 °C 300 A (300 V) 3 Poles in Series, 70 °C 240 A (72 V) 1-Pole, 40 °C 350 A (72 V) 1-Pole, 60 °C 300 A (72 V) 1-Pole, 70 °C 240 A (72 V) 2 Poles in Series, 40 °C 350 A (72 V) 2 Poles in Series, 60 °C 300 A (72 V) 2 Poles in Series, 70 °C 240 A (72 V) 3 Poles in Series, 40 °C 350 A (72 V) 3 Poles in Series, 60 °C 300 A (72 V) 3 Poles in Series, 70 °C 240 A (90 V) 1 Pole, 40 °C 350 A (90 V) 1 Pole, 60 °C 300 A (90 V) 1 Pole, 70 °C 240 A | Rated Operational Current DC-3 (Ie) | (110 V) 2 Poles in Series, 40 °C 275 A (110 V) 2 Poles in Series, 60 °C 275 A (110 V) 2 Poles in Series, 70 °C 240 A (110 V) 3 Poles in Series, 40 °C 275 A (110 V) 3 Poles in Series, 60 °C 275 A (110 V) 3 Poles in Series, 70 °C 240 A (220 V) 3 Poles in Series, 40 °C 275 A (220 V) 3 Poles in Series, 60 °C 275 A (220 V) 3 Poles in Series, 70 °C 240 A (72 V) 2 Poles in Series, 40 °C 275 A (72 V) 2 Poles in Series, 60 °C 275 A (72 V) 2 Poles in Series, 70 °C 240 A (72 V) 3 Poles in Series, 40 °C 275 A (72 V) 3 Poles in Series, 60 °C 275 A (72 V) 3 Poles in Series, 70 °C 240 A |
| Rated Operational Current DC-5 (Ie) | (110 V) 2 Poles in Series, 40 °C 275 A (110 V) 2 Poles in Series, 60 °C 275 A (110 V) 2 Poles in Series, 70 °C 240 A (110 V) 3 Poles in Series, 40 °C 275 A (110 V) 3 Poles in Series, 60 °C 275 A (110 V) 3 Poles in Series, 70 °C 240 A (220 V) 3 Poles in Series, 40 °C 275 A (220 V) 3 Poles in Series, 60 °C 275 A (220 V) 3 Poles in Series, 70 °C 240 A (72 V) 2 Poles in Series, 40 °C 275 A (72 V) 2 Poles in Series, 60 °C 275 A (72 V) 2 Poles in Series, 70 °C 240 A (72 V) 3 Poles in Series, 40 °C 275 A (72 V) 3 Poles in Series, 60 °C 275 A (72 V) 3 Poles in Series, 70 °C 240 A | Mechanical Durability | 5 million |
| Maximum Mechanical Switching Frequency | 300 cycles per hour | Rated Control Circuit Voltage (Uc) | 50 Hz / 60 Hz 250 ... 500 V DC Operation 250 ... 500 V |
| Coil Consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 16.1 V·A Holding at Max. Rated Control Circuit Voltage 60 Hz 16.1 V·A Pull-in at Max. Rated Control Circuit Voltage 50 Hz 260 V·A Pull-in at Max. Rated Control Circuit Voltage 60 Hz 260 V·A Pull-in at Max. Rated Control Circuit Voltage DC 230 W | Terminal Type | Main Circuit: Bars |
| General Use Rating UL/CSA | (600 V AC) 300 A | Horsepower Rating UL/CSA | (200 ... 208 V AC) Three Phase 60 hp (220 ... 240 V AC) Three Phase 75 hp (440 ... 480 V AC) Three Phase 150 hp (550 ... 600 V AC) Three Phase 200 hp |
| Object Classification Code | Q | ETIM 7 | EC000066 - Power contactor, AC switching |
| ETIM 8 | EC000066 - Power contactor, AC switching | ETIM 9 | EC000066 - Power contactor, AC switching |
| eClass | V11.0 : 27371003 | UNSPSC | 39121529 |
| IDEA Granular Category Code (IGCC) | 4755 >> Contactors | Manufacturer ID | 1SFL527062R1422 |
Specifications may be subject to change without notice
