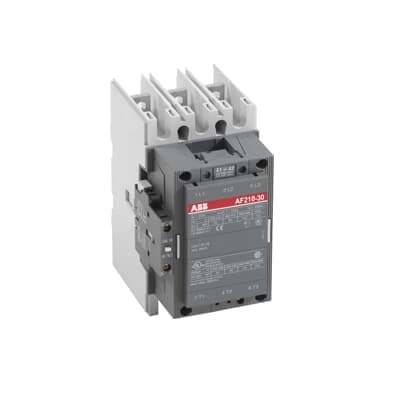

AF210-30-00 100-250V 50/60Hz / DC
Product ID:93497
Updated: 2026/4/3
Key Features
- 1Operate with 100-250V AC/DC control voltage. 2、Handle up to 350A thermal current at 40°C. 3、Endure 5 million mechanical cycles for longevity. 4、Suit motor starting, isolation, and distribution to 690V. 5、Integrate short-circuit protection and gG fuses.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 140 mm | Product Net Depth / Length | 180.5 mm |
| Product Net Height | 227 mm | Product Net Weight | 5.05 kg |
| Number of Main Contacts NO | 3 | Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 | Number of Auxiliary Contacts NC | 0 |
| Rated Operational Current AC-1 (Ie) | (690 V) 40 °C 350 A (690 V) 55 °C 300 A (690 V) 70 °C 240 A | Rated Operational Current AC-3 (Ie) | (415 V) 55 °C 210 A (440 V) 55 °C 210 A (500 V) 55 °C 210 A (690 V) 55 °C 210 A (380 / 400 V) 55 °C 210 A (220 / 230 / 240 V) 55 °C 210 |
| Rated Operational Power AC-3 (Pe) | (415 V) 110 kW (440 V) 110 kW (500 V) 132 kW (690 V) 160 kW (380 / 400 V) 110 kW (220 / 230 / 240 V) 59 kW | Maximum Electrical Switching Frequency | 300 cycles per hour |
| Mechanical Durability | 5 million | Rated Control Circuit Voltage (Uc) | 50 Hz 100...250 V 60 Hz 100...250 V DC Operation 100...250 V |
| Coil Consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 10 V·A Holding at Max. Rated Control Circuit Voltage 60 Hz 10 V·A Holding at Max. Rated Control Circuit Voltage DC 2 W Pull-in at Max. Rated Control Circuit Voltage 50 Hz 470 V·A Pull-in at Max. Rated Control Circuit Voltage 60 Hz 470 V·A Pull-in at Max. Rated Control Circuit Voltage DC 500 W | Terminal Type | Main Circuit: Bars |
| Horsepower Rating UL/CSA | (200 V AC) Three Phase 60 hp (208 V AC) Three Phase 60 hp (220 ... 240 V AC) Three Phase 75 hp (440 ... 480 V AC) Three Phase 150 hp (550 ... 600 V AC) Three Phase 200 hp | Object Classification Code | Q |
| ETIM 7 | EC000066 - Power contactor, AC switching | ETIM 8 | EC000066 - Power contactor, AC switching |
| ETIM 9 | EC000066 - Power contactor, AC switching | eClass | V11.0 : 27371003 |
| UNSPSC | 39121529 | IDEA Granular Category Code (IGCC) | 4755 >> Contactors |
| Manufacturer ID | 1SFL517001R7000 |
Specifications may be subject to change without notice
