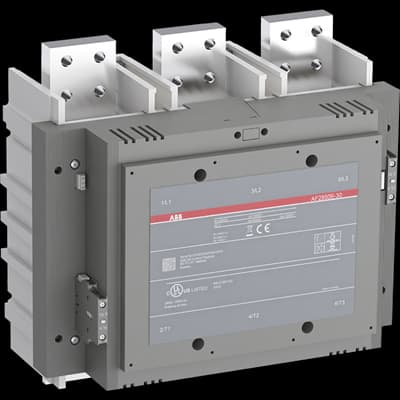

AF2850B-30-22-70
Product ID:84165
Updated: 2026/4/5
Key Features
- 1Operate with a wide 100-250V AC/DC control voltage range. 2、Ensure reliability with built-in surge protection for unstable networks. 3、Install easily using the compact, block-type design with pre-mounted parts. 4、Handle high currents up to 2850A for demanding applications. 5、Meet IEC and UL standards for enhanced durability and safety.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 438 mm | Product Net Depth / Length | 244 mm |
| Product Net Height | 422 mm | Product Net Weight | 43 kg |
| Coil Consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 48 V·A Holding at Max. Rated Control Circuit Voltage 50 Hz 20.5 W Pull-in at Max. Rated Control Circuit Voltage 50 Hz 2450 V·A | Ambient Air Temperature | Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C Close to Contactor for Storage -40 ... 70 °C |
| Object Classification Code | Q | ETIM 7 | EC000066 - Power contactor, AC switching |
| ETIM 8 | EC000066 - Power contactor, AC switching | ETIM 9 | EC000066 - Power contactor, AC switching |
| eClass | V11.0 : 27371003 | UNSPSC | 39121529 |
| Manufacturer ID | 1SFL687063R7022 |
Specifications may be subject to change without notice
