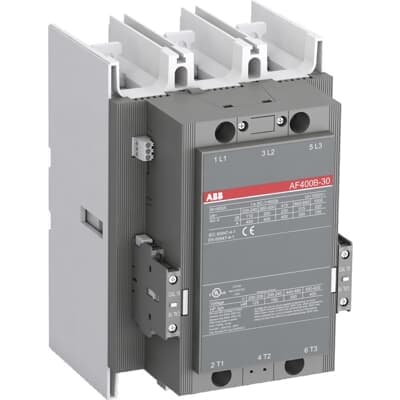

AF400B-30-22-71
Product ID:70131
Updated: 2026/7/14
Key Features
- 1Operate with 250-500VAC/DC for versatile power compatibility.
- 2Control motors rated up to 400 HP at 480V for heavy-duty applications.
- 3Achieve 5 million operating cycles for exceptional longevity.
- 4Utilize for motor starting, isolation, and electrical distribution tasks.
- 5Meet IEC 60947-1 and EN 60529 standards for compliance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 186 mm | Product Net Depth / Length | 216 mm |
| Product Net Height | 278 mm | Product Net Weight | 10.6 kg |
| Coil Consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 12 V·A Pull-in at Max. Rated Control Circuit Voltage 50 Hz 885 V·A | Ambient Air Temperature | Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C Close to Contactor for Storage -40 ... 70 °C |
| Object Classification Code | Q | ETIM 7 | EC000066 - Power contactor, AC switching |
| ETIM 8 | EC000066 - Power contactor, AC switching | ETIM 9 | EC000066 - Power contactor, AC switching |
| eClass | V11.0 : 27371003 | UNSPSC | 39121529 |
| Manufacturer ID | 1SFL577063R7122 |
Specifications may be subject to change without notice
