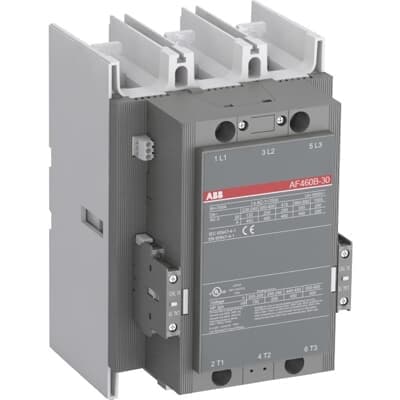

AF460B-30-22-68
Product ID:87397
Updated: 2026/7/15
Key Features
- 1Support up to 500 hp with wide coil voltage range (48-130 VAC/VDC).
- 2Built with durable IP00/IP20 enclosure to withstand voltage dips.
- 3Operate with electronic coil interface for wide control voltage (100-250V).
- 4Reduce panel energy consumption with distinct closing and opening.
- 5Include add-on auxiliary contact blocks for side mounting and accessories.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 186 mm | Product Net Depth / Length | 216 mm |
| Product Net Height | 278 mm | Product Net Weight | 10.6 kg |
| Coil Consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 12 V·A Pull-in at Max. Rated Control Circuit Voltage 50 Hz 900 V·A | Ambient Air Temperature | Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C Close to Contactor for Storage -40 ... 70 °C |
| Object Classification Code | Q | ETIM 7 | EC000066 - Power contactor, AC switching |
| ETIM 8 | EC000066 - Power contactor, AC switching | ETIM 9 | EC000066 - Power contactor, AC switching |
| eClass | V11.0 : 27371003 | UNSPSC | 39121529 |
| Manufacturer ID | 1SFL597063R6822 |
Specifications may be subject to change without notice
