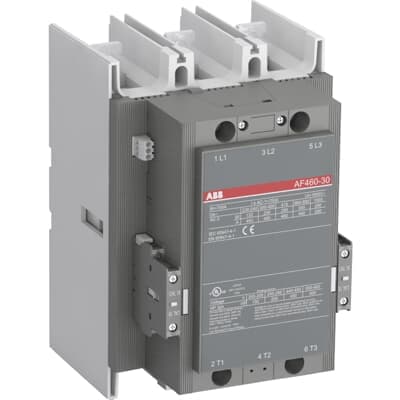

AF460W-30-22
Product ID:90622
Updated: 2026/4/3
Key Features
- 1Support motors up to 500 hp for demanding applications. 2、Operate with wide coil voltages from 48 to 130 VAC/VDC. 3、Ensure reliability with built-in surge suppression. 4、Integrate easily using a compact IP00/IP20 enclosure. 5、Achieve durability across 5 million operating cycles.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 186 mm | Product Net Depth / Length | 216 mm |
| Product Net Height | 278 mm | Product Net Weight | 10.6 kg |
| Number of Main Contacts NO | 3 | Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 2 | Number of Auxiliary Contacts NC | 2 |
| Rated Operational Voltage | Main Circuit 1000 V | Rated Operational Current AC-1 (Ie) | (1000 V) 40 °C 700 A (1000 V) 60 °C 600 A (1000 V) 70 °C 480 A (690 V) 40 °C 700 A (690 V) 70 °C 480 A |
| Rated Operational Current AC-3 (Ie) | (415 V) 55 °C 460 A (440 V) 55 °C 460 A (500 V) 55 °C 460 A (690 V) 55 °C 400 A (1000 V) 55 °C 200 A (380 / 400 V) 55 °C 460 A (220 / 230 / 240 V) 55 °C 460 A | Rated Operational Power AC-3 (Pe) | (415 V) 250 kW (440 V) 250 kW (500 V) 315 kW (690 V) 355 kW (1000 V) 280 kW (380 / 400 V) 250 kW (220 / 230 / 240 V) 132 kW |
| Maximum Electrical Switching Frequency | 300 cycles per hour | Mechanical Durability | 3 million |
| Rated Control Circuit Voltage (Uc) | 50 Hz 100 ... 250 V 60 Hz 100 ... 250 V DC Operation 100 ... 250 V | Terminal Type | Main Circuit: Bars |
| Horsepower Rating NEMA | (200 V AC) Three Phase 150 Hp (230 V AC) Three Phase 200 Hp (460 V AC) Three Phase 400 Hp (575 V AC) Three Phase 400 Hp | General Use Rating UL/CSA | (600 V AC) 650 A |
| Horsepower Rating UL/CSA | (200 V AC) Three Phase 150 hp (208 V AC) Three Phase 150 hp (220 ... 240 V AC) Three Phase 200 hp (440 ... 480 V AC) Three Phase 400 hp (550 ... 600 V AC) Three Phase 500 hp | Object Classification Code | Q |
| ETIM 7 | EC000066 - Power contactor, AC switching | ETIM 8 | EC000066 - Power contactor, AC switching |
| ETIM 9 | EC000066 - Power contactor, AC switching | eClass | V11.0 : 27371003 |
| UNSPSC | 39121529 | IDEA Granular Category Code (IGCC) | 4758 >> Iec Contactors |
| Manufacturer ID | 1SFL597027R7022 |
