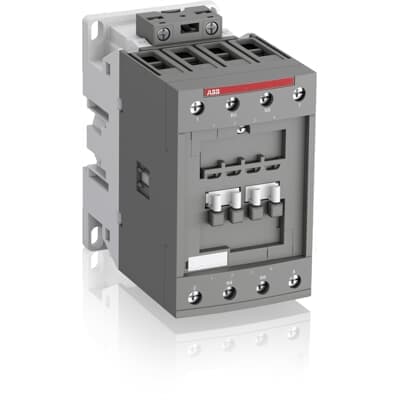

AF52B-22-00-13
Product ID:77213
Updated: 2026/4/4
Key Features
- 1Comply with IEC 60947-4-1 standards for assured safety and reliability. 2、Operate with both AC and DC control circuits for versatile application. 3、Integrate easily using a wide range of available accessories. 4、Handle high thermal currents for efficient, cool-running performance. 5、Endure demanding industrial conditions with a durable, long-life design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 70 mm | Product Net Depth / Length | 113.5 mm |
| Product Net Height | 125.5 mm | Product Net Weight | 1.16 kg |
| Number of Main Contacts NO | 2 | Number of Main Contacts NC | 2 |
| Number of Auxiliary Contacts NO | 0 | Number of Auxiliary Contacts NC | 0 |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1:22, CSA C22.2 No. 60947-4-1:22, IEC 60077-1 (applicable parts), IEC 60077-2 (applicable parts), EN 50155 (applicable parts), IEC 61373, For compliance confirmation on applicable parts based on your application and combination, please consult your ABB sales representatives. | Rated Operational Voltage | Main Circuit 690 V |
| Rated Operational Current AC-1 (Ie) | (690 V) 40 °C 100 A (690 V) 60 °C 80 A (690 V) 70 °C 70 A | Rated Operational Current AC-3 (Ie) | (415 V) 60 °C 53 A (440 V) 60 °C 53 A (500 V) 60 °C 45 A (690 V) 60 °C 35 A (380 / 400 V) 60 °C 53 A (220 / 230 / 240 V) 60 °C 53 A |
| Rated Operational Power AC-3 (Pe) | (415 V) 30 kW (440 V) 30 kW (500 V) 30 kW (690 V) 30 kW (380 / 400 V) 22 kW (220 / 230 / 240 V) 15 kW | Rated Control Circuit Voltage (Uc) | 50 Hz 100 ... 250 V DC Operation 100 ... 250 V |
| Coil Consumption | Average Holding Value 50 / 60 Hz 4 V·A Average Holding Value DC 2 W | Terminal Type | Screw Terminals |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V | Ambient Air Temperature | Close to Contactor for Storage -60 ... +80 °C Near Contactor for Operation in Free Air -40 ... 70 °C |
| Climatic Withstand | Category B according to IEC 60947-1 Annex Q | Maximum Operating Altitude Permissible | Without Derating 3000 m |
| Shock and Vibration Withstand acc. to IEC 61373 | Category 1, Class B | Object Classification Code | Q |
| ETIM 7 | EC000066 - Power contactor, AC switching | ETIM 8 | EC000066 - Power contactor, AC switching |
| ETIM 9 | EC000066 - Power contactor, AC switching | eClass | V11.0 : 27371003 |
| UNSPSC | 39121529 | Manufacturer ID | 1SBL367561R1300 |
