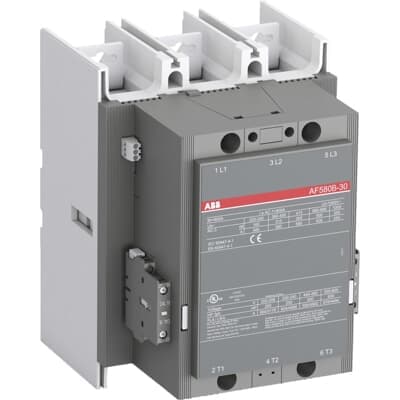

AF580B-30-22-70
Product ID:87408
Updated: 2026/7/15
Key Features
- 1Operate across a wide 100-250V AC/DC control voltage range.
- 2Ensure reliability with built-in surge suppression against voltage dips.
- 3Withstand 3 million mechanical cycles for long-lasting durability.
- 4Control motors efficiently for starting and distribution up to 1000V.
- 5Integrate easily into panels with a compact 283x210x242 mm design.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 210 mm | Product Net Depth / Length | 242 mm |
| Product Net Height | 283 mm | Product Net Weight | 13.6 kg |
| Coil Consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 12 V·A Pull-in at Max. Rated Control Circuit Voltage 50 Hz 880 V·A | Ambient Air Temperature | Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C Close to Contactor for Storage -40 ... 70 °C |
| Object Classification Code | Q | ETIM 7 | EC000066 - Power contactor, AC switching |
| ETIM 8 | EC000066 - Power contactor, AC switching | ETIM 9 | EC000066 - Power contactor, AC switching |
| eClass | V11.0 : 27371003 | UNSPSC | 39121529 |
| Manufacturer ID | 1SFL617063R7022 |
Specifications may be subject to change without notice
