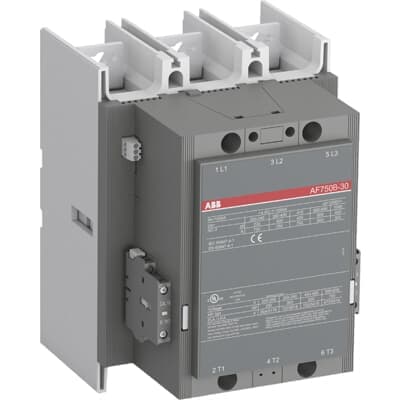

AF750B-30-22-69
Product ID:86847
Updated: 2026/7/15
Key Features
- 1Operate with a wide 48-130V DC and 50/60Hz AC control voltage range.
- 2Handle high currents up to 1050A AC-1 and 900A for UL general use.
- 3Meet IEC 60947-4-1 standards with a 7500A breaking capacity.
- 4Suit motor starting, by-pass, and distribution applications up to 1000V.
- 5Simplify installation with built-in surge protection and pre-mounted auxiliary contacts.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 210 mm | Product Net Depth / Length | 242 mm |
| Product Net Height | 283 mm | Product Net Weight | 13.6 kg |
| Coil Consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 12 V·A Pull-in at Max. Rated Control Circuit Voltage 50 Hz 1020 V·A | Ambient Air Temperature | Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C Close to Contactor for Storage -40 ... 70 °C |
| Object Classification Code | Q | ETIM 7 | EC000066 - Power contactor, AC switching |
| ETIM 8 | EC000066 - Power contactor, AC switching | ETIM 9 | EC000066 - Power contactor, AC switching |
| eClass | V11.0 : 27371003 | UNSPSC | 39121529 |
| Manufacturer ID | 1SFL637063R6922 |
Specifications may be subject to change without notice
