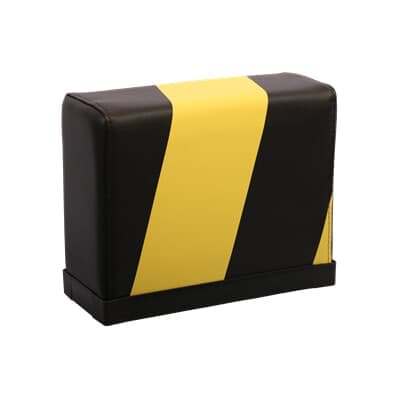

ASB 60/100 B/Y
Product ID:87563
Updated: 2026/7/15
Key Features
- 1Ensure reliable operation with precise actuation forces.
- 2Exceed EN ISO 13856-3 standards for safety compliance.
- 3Adjust overtravel distances to tailor bumper height.
- 4Withstand rigorous use with high-quality materials.
- 5Accommodate various needs with multiple test speeds.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cable Length | 5.2 m | Product Net Depth / Length | 1000 mm |
| Product Net Height | 100 mm | Product Net Width | 60 mm |
| Product Net Weight | 1.5 kg | Color | Black/Yellow |
| Connection Configuration | Depends on Bumper base price | Maximum Control Current DC | 10 mA |
| Overtravel | 60 mm | Rated Operational Voltage | 24 V DC |
| Technical Information | Actuating distance: 15% of bumper height; Maximum compression: 75% of bumper height | Ambient Air Temperature | Operation 0 ... +50 °C |
| Degree of Protection | IP54 | Material | Artificial leather |
| eClass | V11.0 : 27273590 | ETIM 7 | EC002887 - Pressure sensitive protective device |
| ETIM 8 | EC002887 - Pressure sensitive protective device | ETIM 9 | EC002887 - Pressure sensitive protective device |
| Object Classification Code | B | Manufacturer ID | 2TLA076200R0500 |
Specifications may be subject to change without notice
Still deciding on ASB 60/100 B/Y?
Our engineers can confirm stock, price, and lead time for this ABB part.
Get a no-obligation quote in 1 minute.
