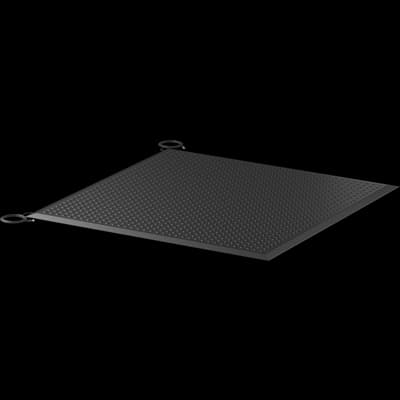

ASK-1T4.4-NP 1x1
Product ID:86893
Updated: 2026/4/4
Key Features
- 1Enhance safety with a cast-in ramp edge trim. 2、Cover a large 1000 x 1500 mm safeguarded area. 3、Ensure reliability with TÜV Nord and cULus certifications. 4、Simplify installation using included 2 x 5 m cables. 5、Guarantee durability over 10 million load cycles.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cable Length | 5 m | Product Net Depth / Length | 1000 mm |
| Product Net Height | 10 mm | Product Net Width | 1000 mm |
| Product Net Weight | 25 kg | Color | Black |
| Connection Configuration | Depends on safety mat base price | Maximum Control Current DC | 100 mA |
| Rated Operational Voltage | 24 V DC | Size | 1 x 1 meter |
| Technical Information | Mechanical life > 10 million load shiftings | Time Range | With Sentry < 20 ms With Pluto S < 30 ms With Pluto B or D < 40 ms in normal condition and < 70 ms at fault condition - Add 30 ms with function block "BigMat" |
| Ambient Air Temperature | Operation -10 ... 55 °C | Degree of Protection | IP65 |
| Material | Polyurethane | eClass | V11.0 : 27273590 |
| ETIM 7 | EC002887 - Pressure sensitive protective device | ETIM 8 | EC002887 - Pressure sensitive protective device |
| ETIM 9 | EC002887 - Pressure sensitive protective device | Object Classification Code | B |
| Manufacturer ID | 2TLA076310R1100 |
Specifications may be subject to change without notice
