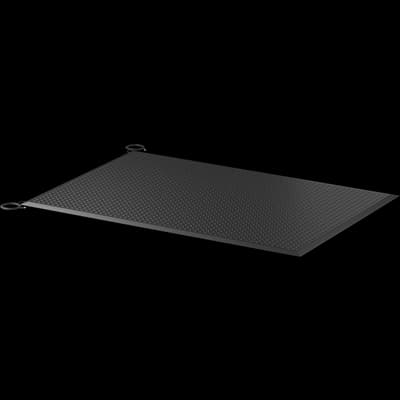

ASK-1T4.4-NP 1x1.5
Product ID:84667
Updated: 2026/7/18
Key Features
- 1Enhance safety with a molded 35 mm ramp rail and 1000 x 1500 mm safeguarded area.
- 2Ensure reliable operation using 2 x 5 m cables with M8 male connectors.
- 3Meet strict standards with TÜV Nord and cULus safety certifications.
- 4Achieve long-term durability from polyurethane with over 10 million load cycles.
- 5Simplify installation via clear instructions and minimal cabling.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cable Length | 5 m | Product Net Depth / Length | 1000 mm |
| Product Net Height | 10 mm | Product Net Width | 1500 mm |
| Product Net Weight | 38 kg | Color | Black |
| Connection Configuration | Depends on safety mat base price | Maximum Control Current DC | 100 mA |
| Rated Operational Voltage | 24 V DC | Size | 1 x 1.5 meter |
| Technical Information | Mechanical life > 10 million load shiftings | Time Range | With Sentry < 20 ms With Pluto S < 30 ms With Pluto B or D < 40 ms in normal condition and < 70 ms at fault condition - Add 30 ms with function block "BigMat" |
| Ambient Air Temperature | Operation -10 ... 55 °C | Degree of Protection | IP65 |
| Material | Polyurethane | eClass | V11.0 : 27273590 |
| ETIM 7 | EC002887 - Pressure sensitive protective device | ETIM 8 | EC002887 - Pressure sensitive protective device |
| ETIM 9 | EC002887 - Pressure sensitive protective device | Object Classification Code | B |
| Manufacturer ID | 2TLA076310R1200 |
Specifications may be subject to change without notice
