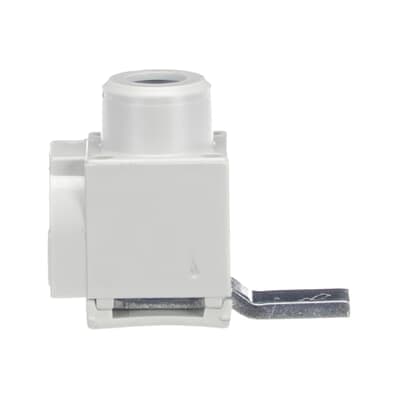

AST50/15
Product ID:79896
Updated: 2026/7/15
Key Features
- 1Ensure durable performance with high-quality materials.
- 2Meet CE safety and reliability standards for compliance.
- 3Tailor the connection specifically for S200/S200P series breakers.
- 4Connect 1/0 AWG feeder conductors straight efficiently.
- 5Simplify installation using the compact 50x100mm design.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suitable For | S200 F200 DDA200 | Suitable for Product Class | Miniature Circuit Breakers Residual Current Circuit Breakers Residual Current Circuit Breakers with Overcurrent Protection |
| Rated Operational Current (Ie) | 80 A | Product Net Weight | 0.022 kg |
| ETIM 8 | EC000001 - Busbar terminal | ETIM 9 | EC000001 - Busbar terminal |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Business |
| CN8 | 8536 90 10 | UNSPSC | 39121432 |
| eClass | V11.0 : 27141146 | IDEA Granular Category Code (IGCC) | 4604 >> Busbar terminal |
| Manufacturer ID | 2CDL200001R5015 |
Specifications may be subject to change without notice
