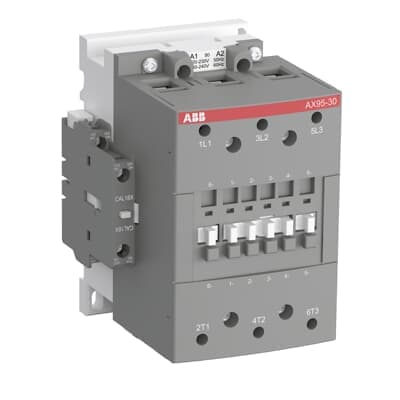

AX95-30-11-36
Product ID:90717
Updated: 2026/7/14
Key Features
- 1Deliver 145 A thermal current for demanding operations.
- 2Control motors efficiently with a 3-pole design.
- 3Ensure 10 million mechanical cycles for longevity.
- 4Support 1000 V and 60 Hz for versatile use.
- 5Meet IEC 60947-4-1 standards for reliability.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 102 mm | Product Net Depth / Length | 123.5 mm |
| Product Net Height | 148 mm | Product Net Weight | 1.9 kg |
| Number of Main Contacts NO | 3 | Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 | Number of Auxiliary Contacts NC | 1 |
| Rated Operational Current AC-1 (Ie) | (690 V) 40 °C 145 A (690 V) 60 °C 135 A (690 V) 70 °C 115 A | Rated Operational Current AC-3 (Ie) | (415 V) 55 °C 96 A (440 V) 55 °C 93 A (500 V) 55 °C 80 A (690 V) 55 °C 65 A (380 / 400 V) 55 °C 96 A (220 / 230 / 240 V) 55 °C 96 A |
| Rated Operational Power AC-3 (Pe) | (380 / 400 V) 45 kW | Maximum Operating Altitude Permissible | Without Derating 3000 m |
| Object Classification Code | Q | ETIM 7 | EC000066 - Power contactor, AC switching |
| ETIM 8 | EC000066 - Power contactor, AC switching | ETIM 9 | EC000066 - Power contactor, AC switching |
| eClass | V11.0 : 27371003 | UNSPSC | 39121529 |
| IDEA Granular Category Code (IGCC) | 4755 >> Contactors | Manufacturer ID | 1SFL431074R3611 |
Specifications may be subject to change without notice
