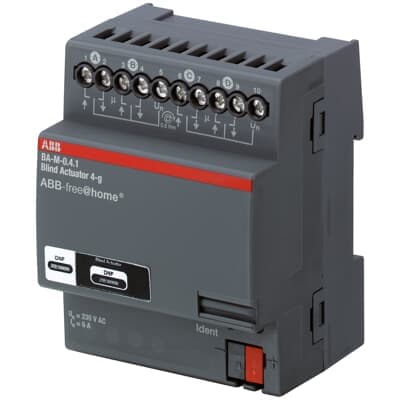

BA-M-0.4.1
Product ID:89660
Updated: 2026/4/3
Key Features
- 1Activate four blinds, roller blinds, or awnings with one unit. 2、Support drives from 24 V AC to 230 V AC. 3、Protect two channels with a common circuit-breaker. 4、Integrate seamlessly with the ABB-free@home automation system. 5、Ensure compliance with CE, EMC, and low-voltage guidelines.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | IP20 | Data Sheet, Technical Information | 2CDG941152P0002 |
| Special Functions | Switching | Number of Outputs | 4 |
| Number of LEDs | 1 | Compatible Bus Systems | free@home (TP) |
| Product Range | free@home | Manual Operation | No |
| Number of Batteries | 0 | Width in Number of Modular Spacings | 4.0 |
| Product Net Width | 80 mm | Product Net Height | 70 mm |
| Product Net Depth / Length | 95 mm | Product Net Weight | 0.22 kg |
| Built-In Depth (t2) | 64.5 mm | Dimension Diagram | 2CDC072033F0015 |
| ETIM 9 | EC001330 - Shutting actuator for bus system | eClass | V11.0 : 27143128 |
| Object Classification Code | A | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer | Manufacturer ID | 2CDG510011R0011 |
Specifications may be subject to change without notice
