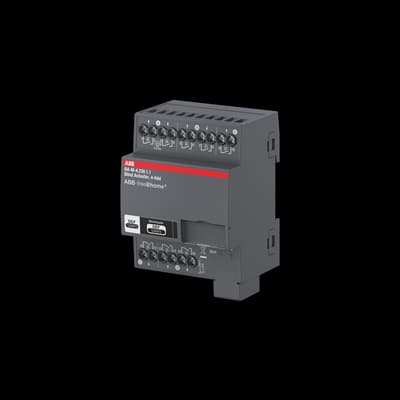

BA-M-4.230.1.1
Product ID:87657
Updated: 2026/4/4
Key Features
- 1Automate blinds effortlessly with the BA-M-4.230.1.1. 2、Adjust positions precisely via customizable settings. 3、Ensure safe operation with IP20 and Cat. III protection. 4、Mount efficiently on DIN-rail adapters. 5、Connect various 230V/24V AC motor types.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | IP20 | Data Sheet, Technical Information | 2CKA000073B5514 |
| Special Functions | Switching | Number of Outputs | 4 |
| Number of LEDs | 1 | Compatible Bus Systems | free@home (TP) |
| Product Range | free@home | Manual Operation | No |
| Number of Batteries | 0 | Width in Number of Modular Spacings | 4.0 |
| Product Net Width | 70 mm | Product Net Height | 90 mm |
| Product Net Depth / Length | 63.5 mm | Product Net Weight | 0.272 kg |
| Built-In Depth (t2) | 63.5 mm | Dimension Diagram | 2CDC072033F0015 |
| ETIM 9 | EC001330 - Shutting actuator for bus system | eClass | V11.0 : 27143128 |
| UNSPSC | 39121801 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer | Manufacturer ID | 2CDG510028R0011 |
Specifications may be subject to change without notice
