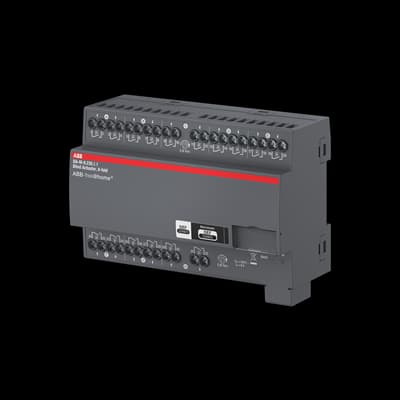

BA-M-8.230.1.1
Product ID:87669
Updated: 2026/7/15
Key Features
- 1Control up to 8 blinds or roller shutters with a single device.
- 2Support 230V AC and 24V AC drives for reliable motor activation.
- 3Integrate with ABB-free@home system for seamless automation.
- 4Include bus terminal for easy coupling to the free@home Bus.
- 5Suit various blind types, including Venetian and roller blinds.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | IP20 | Data Sheet, Technical Information | 2CKA000073B5514 |
| Special Functions | Switching | Number of Outputs | 8 |
| Number of LEDs | 1 | Compatible Bus Systems | free@home (TP) |
| Product Range | free@home | Manual Operation | No |
| Number of Batteries | 0 | Width in Number of Modular Spacings | 8.0 |
| Product Net Width | 140 mm | Product Net Height | 90 mm |
| Product Net Depth / Length | 63.5 mm | Product Net Weight | 0.502 kg |
| Built-In Depth (t2) | 63.5 mm | Dimension Diagram | 2CDC072027F0017 |
| ETIM 9 | EC001330 - Shutting actuator for bus system | eClass | V11.0 : 27143128 |
| UNSPSC | 39121801 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer | Manufacturer ID | 2CDG510029R0011 |
Specifications may be subject to change without notice
