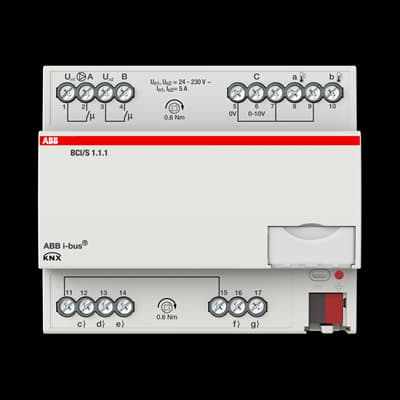

BCI/S1.1.1
Product ID:85691
Updated: 2026/7/16
Key Features
- 1Integrate seamlessly with KNX systems for efficient boiler/chiller control.
- 2Transmit set points via analog output (0…10V) and receive set values via KNX.
- 3Monitor heat generator/chiller status via two binary inputs and send feedback to KNX bus.
- 4Switch on/off heat generators/chillers and pumps with relay outputs (5A).
- 5Support advanced diagnostics with the ABB i-bus Tool for improved commissioning.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | IP20 | Data Sheet, Technical Information | 2CDC508254D0211 |
| Maximum Number of Switching Outputs | 2 | Number of Inputs | Analog (0 ... 10 V / 4 ... 20 mA) 5 |
| Number of Input Channels | 5 | Number of Output Channels | 3 |
| Compatible Bus Systems | KNX (TP) | Product Range | KNX |
| Manual Operation | No | Suitable for C-Load | No |
| Number of Batteries | 0 | Width in Number of Modular Spacings | 6.0 |
| Product Net Width | 105 mm | Product Net Height | 90 mm |
| Product Net Depth / Length | 63.5 mm | Product Net Weight | 0.21 kg |
| Dimension Diagram | 2CDC072026F0017 | ETIM 9 | EC001584 - I/O device for bus system |
| eClass | V11.0 : 27143145 | UNSPSC | 39122221 |
| Object Classification Code | A | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer | Manufacturer ID | 2CDG110222R0011 |
Specifications may be subject to change without notice
