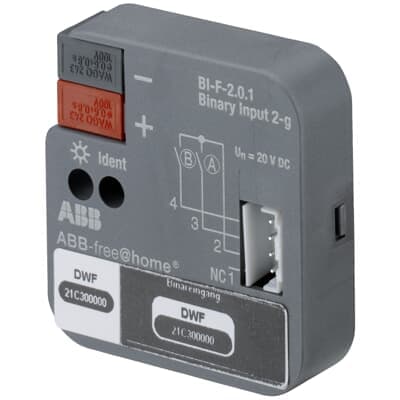

BI-F-2.0.1
Product ID:80669
Updated: 2026/7/15
Key Features
- 1Mount compactly in standard 60 mm installation boxes.
- 2Connect to ABB-free@home bus without extra power.
- 3Wire two channels to push-buttons or auxiliary contacts.
- 4Integrate conventional switches and window contacts easily.
- 5Ensure safety with CE marking per EMC guidelines.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | IP20 | Data Sheet, Technical Information | 2CDG941152P0002 |
| Number of LEDs | 1 | Number of Digital Inputs | 2 |
| Number of Inputs | Analog (0 ... 10 V / 4 ... 20 mA) 2 | Compatible Bus Systems | free@home (TP) |
| Product Range | free@home | Manual Operation | No |
| Number of Batteries | 0 | Product Net Width | 39 mm |
| Product Net Height | 12 mm | Product Net Depth / Length | 40 mm |
| Product Net Weight | 0.043 kg | Dimension Diagram | 9AKK108464A0432 |
| ETIM 9 | EC000688 - Binary input for bus system | eClass | V11.0 : 27143121 |
| Object Classification Code | A | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer | Manufacturer ID | 2CDG510002R0011 |
Specifications may be subject to change without notice
