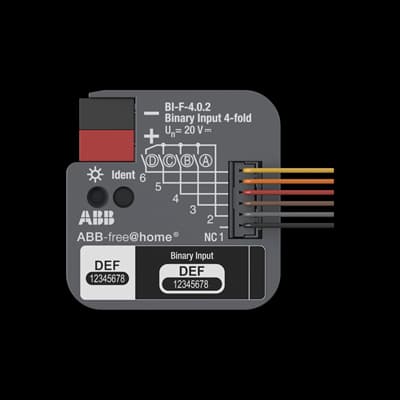

BI-F-4.0.2
Product ID:80668
Updated: 2026/4/4
Key Features
- 1Control up to 4 channels with conventional push-buttons or auxiliary contacts. 2、Enhance automation with advanced contact scanning capabilities. 3、Integrate seamlessly into smart home and industrial control systems. 4、Simplify setup with easy integration into existing infrastructure. 5、Configure flexibly for various application needs.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | IP20 | Data Sheet, Technical Information | 2CKA000073B5764 |
| Sub-Function | LED controlling | Number of Inputs | 4 Analog (0 ... 10 V / 4 ... 20 mA) 4 |
| Number of Input Channels | 4 | Number of Output Channels | 4 |
| Compatible Bus Systems | free@home (TP) | Manual Operation | No |
| Suitable for C-Load | No | Number of Batteries | 0 |
| Product Net Width | 39 mm | Product Net Height | 12 mm |
| Product Net Depth / Length | 40 mm | Product Net Weight | 0.044 kg |
| Dimension Diagram | 9AKK108464A0432 | ETIM 9 | EC001584 - I/O device for bus system |
| eClass | V11.0 : 27143145 | Object Classification Code | A |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
| Manufacturer ID | 2CDG510024R0011 |
Specifications may be subject to change without notice
