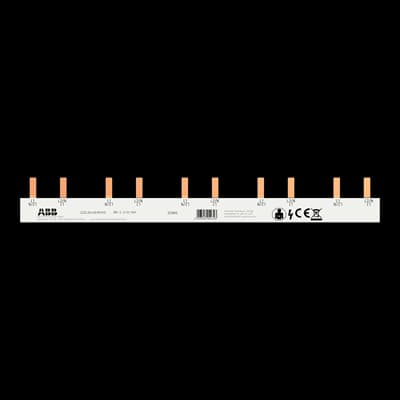

BR-S 2/10/10H
Product ID:79765
Updated: 2026/7/15
Key Features
- 1Achieve superior electrical safety rated at 4 kV (1.2/50µs).
- 2Select versatile applications from 0.75 to 2.5 mm².
- 3Ensure long-lasting performance with up to 10,000 operations.
- 4Enable easy installation with compact 85 x 69 x 8.8 mm dimensions.
- 5Guarantee broad compatibility with MCBs S200 and RCDs F200 series.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Operational Voltage | 400 V | Rated Conditional Short-Circuit Current (Inc) | 25 kA |
| Rated Uninterrupted Current (Iu) | 63 A | Pitch | 17.8 |
| Number of Poles | 2 | Number of Phases | 2 |
| Connection Type | Pin | Number of Batteries | 0 |
| Rated Cross-Section | 10 mm² | Width in Number of Modular Spacings | 10.0 |
| Product Net Width | 0.026 mm | Product Net Height | 0.008 mm |
| Product Net Depth / Length | 210 mm | Product Net Weight | 0.026 kg |
| ETIM 8 | EC000215 - Phase busbar | ETIM 9 | EC000215 - Phase busbar |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Business |
| CN8 | 8536 90 10 | UNSPSC | 39121614 |
| eClass | V11.0 : 27142207 | Manufacturer ID | 2CDL824001R1010 |
Specifications may be subject to change without notice
