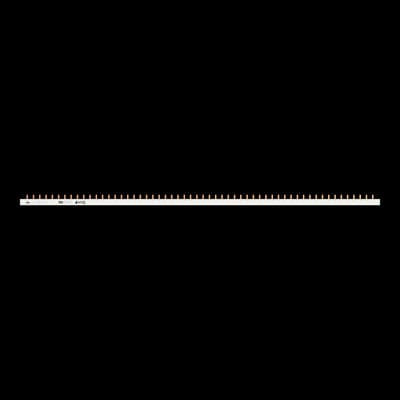

BR-S 2/56/16
Product ID:80555
Updated: 2026/7/15
Key Features
- 1Connect up to 56 circuits for enhanced system reliability.
- 2Ensure secure connections with PIN-type terminal design.
- 3Handle 2P 16mm² wiring for robust current capacity.
- 4Integrate seamlessly with ABB RCBO DS202CR series.
- 5Rely on durable construction for long-term performance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Operational Voltage | 400 V | Rated Conditional Short-Circuit Current (Inc) | 25 kA |
| Rated Uninterrupted Current (Iu) | 80 A | Pitch | 17.8 |
| Number of Poles | 2 | Number of Phases | 2 |
| Connection Type | Pin | Number of Batteries | 0 |
| Rated Cross-Section | 16 mm² | Width in Number of Modular Spacings | 56.0 |
| Product Net Width | 0.03 mm | Product Net Height | 0.015 mm |
| Product Net Depth / Length | 1016 mm | Product Net Weight | 0.241 kg |
| ETIM 8 | EC000215 - Phase busbar | ETIM 9 | EC000215 - Phase busbar |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Business |
| CN8 | 8538 90 99 | UNSPSC | 39121614 |
| eClass | V11.0 : 27142207 | Manufacturer ID | 2CDL824001R1656 |
Specifications may be subject to change without notice
