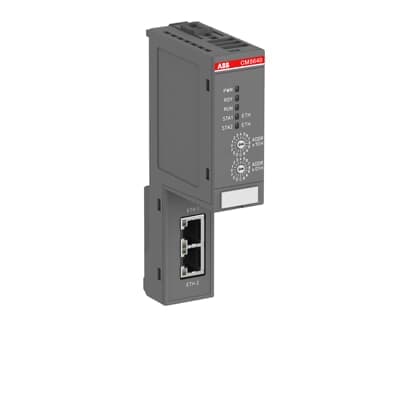

CM5640-2ETH
Product ID:82069
Updated: 2026/7/14
Key Features
- 1Support two independent Ethernet ports for robust connectivity.
- 2Transfer data at speeds up to 100 Mbps per port.
- 3Ensure compatibility with Modbus TCP and PROFINET.
- 4Install the compact module on DIN rails to save space.
- 5Operate reliably in a wide temperature range from -25°C to +60°C.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 0.101 kg | Product Net Depth / Length | 62 mm |
| Product Net Height | 135 mm | Product Net Width | 28 mm |
| Gross Weight | 0.134 kg | Package Level 1 Depth / Length | 147 mm |
| Package Level 1 Height | 40 mm | Package Level 1 Width | 78 mm |
| Package Level 1 Units | 1 carton | Function | Protocols: TCP/P, UDP, Modbus TCP |
| Communication Interface | Serial | Number of Hardware Interfaces | Industrial Ethernet 2 Other 0 Parallel 0 RS-232 0 RS-422 0 RS-485 0 Serial TTY 0 USB 0 Wireless 0 |
| Data Transmission Rate | 100000 kbit/s | Product Main Type | CM5640 |
| Product Name | Distributed Automation PLCs | eClass | 27-24-22-08 |
| ETIM 8 | EC001423 - PLC communication module | UNSPSC | 32151705 |
| SCIP | 4fceac28-c94c-4f15-bba0-6ee24b1d48e2 Germany (DE) | WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SAP176000R0080 |
Specifications may be subject to change without notice
