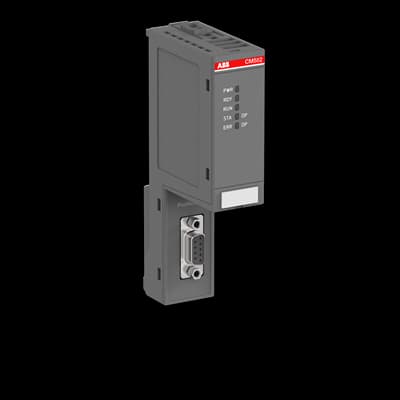

CM582-DP
Product ID:90130
Updated: 2026/4/3
Key Features
- 1Achieve high-performance communication at 12,000 kbit/s data rate. 2、Scale your automation flexibly within the AC500 PLC system. 3、Rely on robust IP20 protection for industrial durability. 4、Integrate easily with various I/O modules and CPUs. 5、Deploy globally with internationally accredited safety standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 0.094 kg | Product Net Depth / Length | 62 mm |
| Product Net Height | 135 mm | Product Net Width | 28 mm |
| Gross Weight | 0.124 kg | Package Level 1 Depth / Length | 147 mm |
| Package Level 1 Height | 40 mm | Package Level 1 Width | 78 mm |
| Package Level 1 Units | 1 carton | Function | PROFIBUS slave |
| Communication Interface | Serial | Number of Hardware Interfaces | Industrial Ethernet 0 Other 0 Parallel 0 RS-232 0 RS-422 0 RS-485 1 Serial TTY 0 USB 0 Wireless 0 |
| Data Transmission Rate | 12000 kbit/s | Degree of Protection | IP20 |
| Product Main Type | CM582 | Product Name | Distributed Automation PLCs |
| eClass | 27-24-22-08 | ETIM 8 | EC001423 - PLC communication module |
| UNSPSC | 32151705 | SCIP | 9a76bb37-106e-43e2-aabb-6ba227843b1a Germany (DE) |
| WEEE B2C / B2B | Business To Business | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Manufacturer ID | 1SAP172200R0001 |
Specifications may be subject to change without notice
