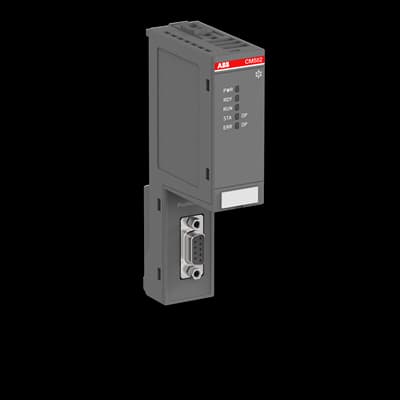

CM582-DP-XC
Product ID:82110
Updated: 2026/7/14
Key Features
- 1Support high-performance PROFIBUS DP slave communication at 12 MBit/s.
- 2Configure flexibly with AC500-XC system for easy integration.
- 3Meet robust IEC standards for emission and discharge.
- 4Ensure durable operation with IP20 rating and vibration resistance.
- 5Simplify installation via DIN rail or screw mounting.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 0.101 kg | Product Net Depth / Length | 62 mm |
| Product Net Height | 135 mm | Product Net Width | 28 mm |
| Gross Weight | 0.131 kg | Package Level 1 Depth / Length | 147 mm |
| Package Level 1 Height | 40 mm | Package Level 1 Width | 78 mm |
| Package Level 1 Units | 1 carton | Function | PROFIBUS slave |
| Communication Interface | Serial | Number of Hardware Interfaces | Industrial Ethernet 0 Other 0 Parallel 0 RS-232 0 RS-422 0 RS-485 1 Serial TTY 0 USB 0 Wireless 0 |
| Data Transmission Rate | 12000 kbit/s | Degree of Protection | IP20 |
| Product Main Type | CM582 | Product Name | Distributed Automation PLCs |
| eClass | 27-24-22-08 | ETIM 8 | EC001423 - PLC communication module |
| UNSPSC | 32151705 | SCIP | 24f1dac7-0cf5-4976-b7c7-564af686096a Germany (DE) |
| WEEE B2C / B2B | Business To Business | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Manufacturer ID | 1SAP372200R0001 |
Specifications may be subject to change without notice
