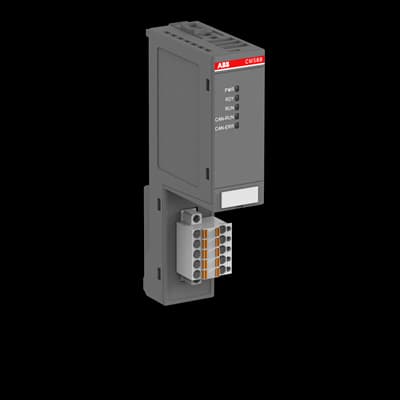

CM588-CN
Product ID:89686
Updated: 2026/4/3
Key Features
- 1Achieve high-speed data transmission at 1000 kbit/s. 2、Ensure robust connectivity with dual plug-in connectors. 3、Maintain wide protocol compatibility including CANopen. 4、Operate reliably with IP20 protection in harsh environments. 5、Integrate easily into existing AC500 automation systems.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 0.09 kg | Product Net Depth / Length | 62 mm |
| Product Net Height | 135 mm | Product Net Width | 28 mm |
| Gross Weight | 0.134 kg | Package Level 1 Depth / Length | 147 mm |
| Package Level 1 Height | 40 mm | Package Level 1 Width | 78 mm |
| Package Level 1 Units | 1 carton | Function | CANopen slave |
| Communication Interface | Serial | Number of Hardware Interfaces | Industrial Ethernet 0 Other 1 Parallel 0 RS-232 0 RS-422 0 RS-485 0 Serial TTY 0 USB 0 Wireless 0 |
| Data Transmission Rate | 1000 kbit/s | Degree of Protection | IP20 |
| Product Main Type | CM588 | Product Name | Distributed Automation PLCs |
| eClass | 27-24-22-08 | ETIM 8 | EC001423 - PLC communication module |
| UNSPSC | 32151705 | SCIP | b486a863-7868-4152-b9e4-d48f479196c9 Germany (DE) |
| WEEE B2C / B2B | Business To Business | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Manufacturer ID | 1SAP172800R0001 |
Specifications may be subject to change without notice
