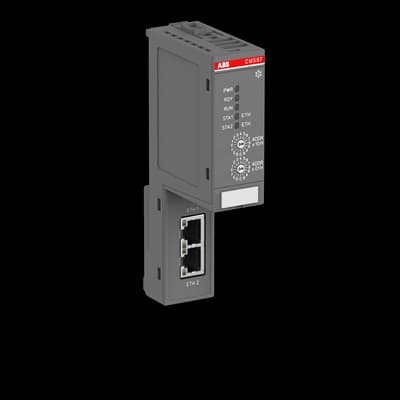

CM597-ETH-XC
Product ID:82231
Updated: 2026/4/3
Key Features
- 1Integrate dual Ethernet ports with a built-in 2-port switch. 2、Support high-speed data transfer at 10/100 Mbit/s rates. 3、Operate reliably in extreme and corrosive conditions. 4、Utilize the Hilscher netX100 processor for robust performance. 5、Apply to functional safety and high-reliability industrial applications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 0.102 kg | Product Net Depth / Length | 62 mm |
| Product Net Height | 135 mm | Product Net Width | 28 mm |
| Gross Weight | 0.136 kg | Package Level 1 Depth / Length | 147 mm |
| Package Level 1 Height | 40 mm | Package Level 1 Width | 78 mm |
| Package Level 1 Units | 1 carton | Function | Protocols: TCP/P, UDP, Modbus TCP |
| Communication Interface | Serial | Number of Hardware Interfaces | Industrial Ethernet 2 Other 0 Parallel 0 RS-232 0 RS-422 0 RS-485 0 Serial TTY 0 USB 0 Wireless 0 |
| Data Transmission Rate | 100000 kbit/s | Degree of Protection | IP20 |
| Product Main Type | CM597 | Product Name | Distributed Automation PLCs |
| eClass | 27-24-22-08 | ETIM 8 | EC001423 - PLC communication module |
| UNSPSC | 32151705 | SCIP | 86906f64-a792-4096-b64b-18e0c7825bcd Germany (DE) |
| WEEE B2C / B2B | Business To Business | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Manufacturer ID | 1SAP373700R0001 |
Specifications may be subject to change without notice
