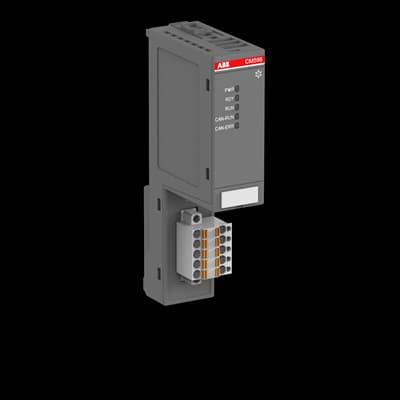

CM598-CN-XC
Product ID:82176
Updated: 2026/4/3
Key Features
- 1Integrate easily with compact 135x28x62 mm dimensions. 2、Achieve high-speed data rates up to 1000 kbit/s. 3、Operate reliably in harsh conditions with IP20 protection. 4、Seamlessly connect to CANopen networks for efficient communication. 5、Ensure broad compatibility with all TB5xx terminal bases.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 0.095 kg | Product Net Depth / Length | 62 mm |
| Product Net Height | 135 mm | Product Net Width | 28 mm |
| Gross Weight | 0.139 kg | Package Level 1 Depth / Length | 147 mm |
| Package Level 1 Height | 40 mm | Package Level 1 Width | 78 mm |
| Package Level 1 Units | 1 carton | Function | CANopen master |
| Communication Interface | Serial | Number of Hardware Interfaces | Industrial Ethernet 0 Other 1 Parallel 0 RS-232 0 RS-422 0 RS-485 0 Serial TTY 0 USB 0 Wireless 0 |
| Data Transmission Rate | 1000 kbit/s | Degree of Protection | IP20 |
| Product Main Type | CM598 | Product Name | Distributed Automation PLCs |
| eClass | 27-24-22-08 | ETIM 8 | EC001423 - PLC communication module |
| UNSPSC | 32151705 | SCIP | 68629346-10b8-4612-9af0-957ae3ef62ad Germany (DE) |
| WEEE B2C / B2B | Business To Business | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Manufacturer ID | 1SAP373800R0001 |
Specifications may be subject to change without notice
