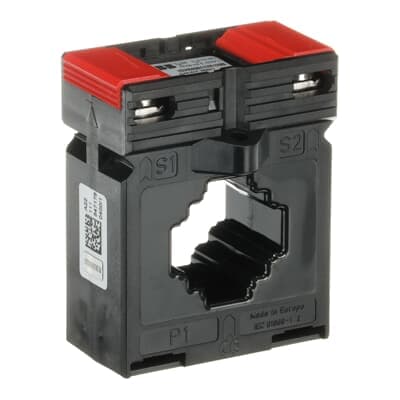

CM-CT 400/1
Product ID:70120
Updated: 2026/4/3
Key Features
- 1Achieve Class 1 measurement accuracy for reliable data. 2、Handle rated primary currents up to 400 A efficiently. 3、Support a 5 VA burden for stable power monitoring. 4、Mount easily on DIN rails with versatile snap-on accessories. 5、Ensure compliance with IEC/EN 61869-1 and -2 standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 61 mm | Product Net Height | 78.5 mm |
| Product Net Depth / Length | 48 mm | Product Net Weight | 0.27 kg |
| Function | Current transformer | Standards | IEC/EN 63000 IEC/EN 61869-1 IEC/EN 61869-2 |
| Object Classification Code | T | ETIM 7 | EC002048 - Current transformer |
| ETIM 8 | EC002048 - Current transformer | ETIM 9 | EC002048 - Current transformer |
| eClass | V11.0 : 27210902 | UNSPSC | 39121032 |
| E-Number (Norway) | 4187316 | Manufacturer ID | 1SVR450117R1200 |
Specifications may be subject to change without notice
