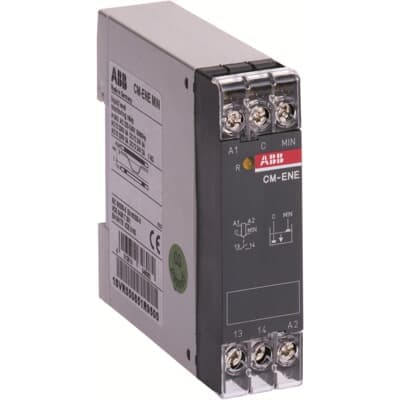

CM-ENE MIN
Product ID:86110
Updated: 2026/7/15
Key Features
- 1Prevent pump damage with reliable dry running protection.
- 2Save panel space using a compact 22.5 mm wide design.
- 3Simplify setup with easy screw connection terminals.
- 4Detect levels accurately with 0-100 kOhm fixed sensitivity.
- 5Ensure safety meeting IEC/EN and UL 508 standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 22.5 mm | Product Net Height | 78 mm |
| Product Net Depth / Length | 78.5 mm | Product Net Weight | 0.106 kg |
| Function | Draining monitoring | Sub-Function | Dry running protection |
| Number of Electrodes | 2 | Measuring Range | 0 ... 100 k⦠|
| Rated Control Supply Voltage (Us) | 24 V AC | Rated Frequency (f) | Supply Circuit 50/60 Hz |
| Output | 1 n/o contact | Terminal Type | Screw Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 4 A | Rated Operational Current AC-15 (Ie) | (230 V) 3 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 4 A | Rated Operational Current DC-13 (Ie) | (24 V) 2 A |
| Rated Impulse Withstand Voltage (Uimp) | Measuring Circuit / Output Circuit 4 kV Supply Circuit / Measuring Circuit 4 kV Supply Circuit / Output Circuit 4 kV | Rated Insulation Voltage (Ui) | Measuring Circuit / Output Circuit 250 V Supply Circuit / Measuring Circuit 250 V Supply Circuit / Output Circuit 250 V |
| Degree of Protection | Housing IP50 Terminals IP20 | Short-Circuit Protective Devices | Output Circuit NO - F Type Fuses 10 A |
| Connecting Capacity | Flexible with Ferrule 2x 0.75 ... 1.5 mm² Flexible 2x 1 ... 1.5 mm² Rigid 2x 0.75 ... 1.5 mm² | Tightening Torque | 0.6 ... 0.8 N·m |
| Wire Stripping Length | 10 mm | Mounting Position | 1 ... 6 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61000-6-2 IEC/EN 61000-6-3 UL 508 |
| Maximum Operating Voltage UL/CSA | Output Circuit 300 V AC | Contact Rating UL/CSA | B300 |
| Connecting Capacity UL/CSA | Flexible with Ferrule 2x 18-16 AWG Flexible 2x 18-16 AWG Rigid 2x 18-16 AWG | Tightening Torque UL/CSA | 7.08 in·lb |
| Ambient Air Temperature | Operation -20 ... +60 °C Storage -40 ... +85 °C | Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Object Classification Code | B | ETIM 7 | EC001447 - (Fill) level monitoring relay |
| ETIM 8 | EC001447 - (Fill) level monitoring relay | ETIM 9 | EC001447 - (Fill) level monitoring relay |
| eClass | V11.0 : 27371813 | UNSPSC | 39122331 |
| E-Number (Finland) | 2712852 | E-Number (Norway) | 4187266 |
| E-Number (Sweden) | 3860803 | Manufacturer ID | 1SVR550855R9500 |
Specifications may be subject to change without notice
