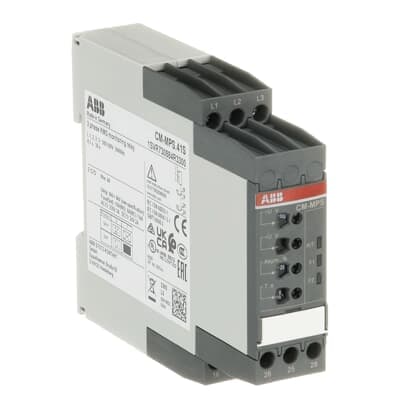

CM-MPS.41S
Product ID:83495
Updated: 2026/7/15
Key Features
- 1Monitor overvoltage, undervoltage, phase unbalance, and phase failure.
- 2Customize protection with adjustable threshold values for specific needs.
- 3Select tripping delay from instantaneous to 30 seconds for coordination.
- 4Install easily on DIN rails for compact and organized systems.
- 5Operate reliably with a robust IP20-rated design for various environments.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 22.5 mm | Product Net Height | 85.6 mm |
| Product Net Depth / Length | 103.7 mm | Product Net Weight | 0.14 kg |
| Function | Phase failure detection Phase sequence monitoring Over- and undervoltage monitoring Phase unbalance detection | Measuring Range | (L-L) 300 ... 500 V AC |
| Time Range | ⤠200 ms start-up delay 0 s or 0.1 ... 30 s tripping delay (ON or OFF) | Rated Control Supply Voltage (Us) | (L-L) 300 ... 500 V AC |
| Rated Frequency (f) | Supply Circuit 50/60 Hz | Output | 2 c/o (SPDT) contacts |
| Terminal Type | Screw Terminals | Rated Operational Current AC-12 (Ie) | (230 V) 4 A |
| Rated Operational Current AC-15 (Ie) | (230 V) 3 A | Rated Operational Current DC-12 (Ie) | (24 V) 4 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A | Minimum Switching Capacity | 24 V 10 mA |
| Rated Impulse Withstand Voltage (Uimp) | Input Circuit 6 kV Output Circuit 4 kV | Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 600 V Output Circuit 1 / Output Circuit 2 300 V |
| Degree of Protection | Housing IP50 Terminals IP20 | Overvoltage Category | III |
| Pollution Degree | 3 | Short-Circuit Protective Devices | Output Circuit NC - F Type Fuses 6 A Output Circuit NO - F Type Fuses 10 A |
| Electrical Durability | AC-12 100000 cycle | Mechanical Durability | 30000000 cycle |
| Connecting Capacity | Flexible with Ferrule 1x 0.5 ... 2.5 mm² Flexible with Ferrule 2x 0.5 ... 1.5 mm² Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm² Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm² Flexible 1x 0.5 ... 2.5 mm² Flexible 2x 0.5 ... 1.5 mm² Rigid 1x 0.5 ... 4 mm² Rigid 2x 0.5 ... 2.5 mm² | Tightening Torque | 0.6 ... 0.8 N·m |
| Wire Stripping Length | 8 mm | Recommended Screw Driver | 0.8 x 4 4.5 Pozidriv 1 |
| Mounting Position | 1 ... 6 | Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 60255-27 IEC/EN 61000-6-2 IEC/EN 61000-6-3 UL 508 | Maximum Operating Voltage UL/CSA | Output Circuit 300 V AC |
| Contact Rating UL/CSA | B300 | Connecting Capacity UL/CSA | Flexible 1x 18-14 AWG Flexible 2x 18-16 AWG Rigid 1x 20-12 AWG Rigid 2x 20-14 AWG |
| Tightening Torque UL/CSA | 7.08 in·lb | Pilot Duty UL/CSA | B300 |
| Flammability According to UL94 | V-0 | Ambient Air Temperature | Operation -25 ... +60 °C Storage -40 ... +85 °C |
| Maximum Operating Altitude Permissible | Without Derating 2000 m | Object Classification Code | B |
| ETIM 7 | EC001441 - Phase monitoring relay | ETIM 8 | EC001441 - Phase monitoring relay |
| ETIM 9 | EC001441 - Phase monitoring relay | eClass | V11.0 : 27371803 |
| UNSPSC | 39122332 | E-Number (Finland) | 2712278 |
| E-Number (Norway) | 4188136 | E-Number (Sweden) | 3860587 |
| Manufacturer ID | 1SVR730884R3300 |
