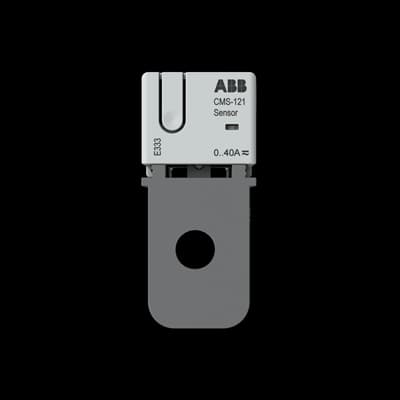

CMS-121FH
Product ID:69816
Updated: 2026/4/3
Key Features
- 1Achieve high AC accuracy of ≤±1.0%. 2、Install easily with an 18mm compact design. 3、Measure currents up to 40A reliably. 4、Connect via flexible flat cable and insulation piercing connectors. 5、Ensure compliance with EU RoHS Directive 2002/95/EC.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Compatibility | SCU100 & SCU200 | Frequency (f) | Rated Current 50 Hz |
| Power Consumption (@P<span style="font-size:x-small;">cons</span>) | At Rated Load 0.18 W | Communication Interface | InSite bus(Flat cable) |
| Accuracy | 1% FS | Measuring Range | 0.1â¦40 A |
| Mounting Type | Surface Mounting | Sensor Type | Open-core (18 mm) |
| Output | Other | Ambient Air Temperature | Operation -25 ... 70 °C |
| Environmental Information | 2CCC481001D0202 | Product Net Width | 17.4 mm |
| Product Net Height | 38.9 mm | Product Net Depth / Length | 41 mm |
| Product Net Weight | 12 g | ETIM 8 | EC002580 - Flow monitoring equipment |
| ETIM 9 | EC002580 - Flow monitoring equipment | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business | CN8 | 90303900 |
| eClass | V11.0 : 27210123 | Object Classification Code | P |
| Manufacturer ID | 2CCA880216R0001 |
Specifications may be subject to change without notice
