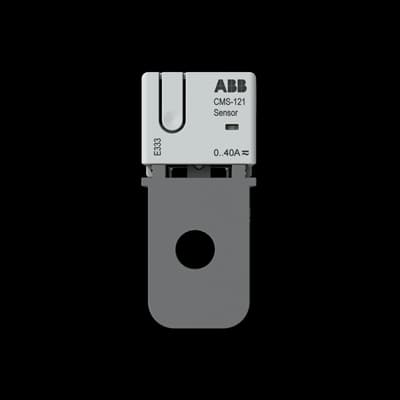

CMS-121LA
Product ID:69885
Updated: 2026/4/3
Key Features
- 1Measure up to 40A with high accuracy using an open-core design. 2、Install easily in tight spaces with a compact 18mm width. 3、Deploy for facility management and critical power system monitoring. 4、Ensure environmental compliance with EU Directive and RoHS standards. 5、Integrate seamlessly with ABB CMS for complete energy management.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Compatibility | SCU100 & SCU200 | Frequency (f) | Rated Current 50 Hz |
| Power Consumption (@P<span style="font-size:x-small;">cons</span>) | At Rated Load 0.18 W | Communication Interface | InSite bus(Flat cable) |
| Accuracy | 1% FS | Measuring Range | 0.1â¦40 A |
| Mounting Type | Surface Mounting | Sensor Type | Open-core (18 mm) |
| Output | Other | Ambient Air Temperature | Operation -25 ... 70 °C |
| Environmental Information | 2CCC481001D0202 | Product Net Width | 17.4 mm |
| Product Net Height | 38.9 mm | Product Net Depth / Length | 41 mm |
| Product Net Weight | 12 g | ETIM 8 | EC002580 - Flow monitoring equipment |
| ETIM 9 | EC002580 - Flow monitoring equipment | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business | CN8 | 90303900 |
| eClass | V11.0 : 27210123 | Object Classification Code | P |
| Manufacturer ID | 2CCA880226R0001 |
Specifications may be subject to change without notice
