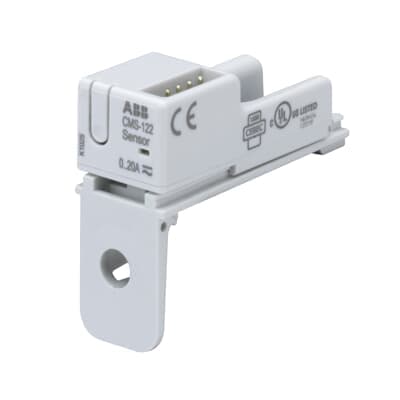

CMS-122LA
Product ID:69303
Updated: 2026/4/3
Key Features
- 1Achieve high-precision measurement with ≤±1% F.S. accuracy. 2、Fit into tight spaces with a compact 17.4mm width design. 3、Install directly and connect simply for quick setup. 4、Measure direct, alternating, or mixed currents up to 20A. 5、Extend or modify your system easily with modular retrofitting.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Compatibility | SCU100 & SCU200 | Frequency (f) | Rated Current 50 Hz |
| Power Consumption (@P<span style="font-size:x-small;">cons</span>) | At Rated Load 0.18 W | Communication Interface | InSite bus(Flat cable) |
| Accuracy | 1% FS | Measuring Range | 0.1â¦20 A |
| Mounting Type | Surface Mounting | Sensor Type | Open-core (18 mm) |
| Output | Other | Ambient Air Temperature | Operation -25 ... 70 °C |
| Environmental Information | 2CCC481001D0202 | Product Net Width | 17.4 mm |
| Product Net Height | 38.9 mm | Product Net Depth / Length | 41 mm |
| Product Net Weight | 12 g | ETIM 8 | EC002580 - Flow monitoring equipment |
| ETIM 9 | EC002580 - Flow monitoring equipment | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business | CN8 | 90303900 |
| eClass | V11.0 : 27210123 | Object Classification Code | P |
| Manufacturer ID | 2CCA880227R0001 |
Specifications may be subject to change without notice
