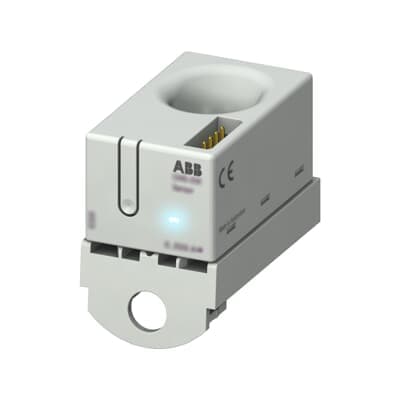

CMS-202S8
Product ID:69807
Updated: 2026/4/3
Key Features
- 1Achieve high accuracy with ≤±0.5% FS current precision. 2、Install easily using the compact 25mm solid-core sensor design. 3、Integrate seamlessly with S800 installation devices and cage terminals. 4、Transmit digital measurement values via the CMS-Bus interface. 5、Operate reliably across a -25°C to +70°C temperature range.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Compatibility | SCU100 & SCU200 | Rated Operational Voltage | 690 V AC 1500 V DC |
| Frequency (f) | Rated Current 50 Hz | Power Consumption (@P<span style="font-size:x-small;">cons</span>) | At Rated Load 0.27 W |
| Communication Interface | InSite bus(Flat cable) | Accuracy | 0.5% FS |
| Measuring Range | 0.1â¦20 A | Mounting Type | Surface Mounting |
| Sensor Type | Solid-core (25 mm) | Output | Other |
| Ambient Air Temperature | Operation -25 ... 70 °C | Environmental Information | 2CCC481001D0202 |
| Product Net Width | 26.5 mm | Product Net Height | 26.5 mm |
| Product Net Depth / Length | 43 mm | Product Net Weight | 28 g |
| ETIM 8 | EC002580 - Flow monitoring equipment | ETIM 9 | EC002580 - Flow monitoring equipment |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Business |
| CN8 | 90303900 | UNSPSC | 41111928 |
| eClass | V11.0 : 27210123 | IDEA Granular Category Code (IGCC) | 6160 >> Current sensors |
| Object Classification Code | P | Manufacturer ID | 2CCA880138R0001 |
Specifications may be subject to change without notice
