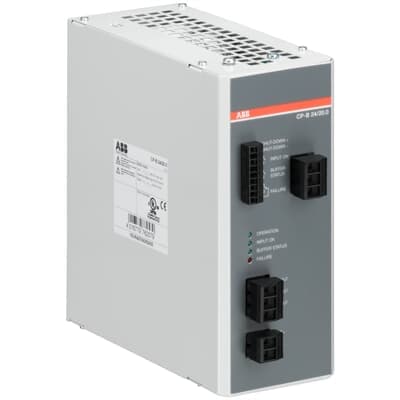

CP-B 24/20.0
Product ID:86802
Updated: 2026/4/3
Key Features
- 1Utilize advanced ultra-capacitors for efficient energy storage. 2、Ensure short-term uninterrupted power with minimal maintenance. 3、Expand with up to 2 modules for longer buffering times. 4、Operate within a wide temperature range and voltage tolerance. 5、Include internal and external fuses for continuous protection.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 84 mm | Product Net Height | 198 mm |
| Product Net Depth / Length | 216 mm | Product Net Weight | 2.2 kg |
| Function | Buffer module | Number of Phases | 1 |
| Input Voltage (Uin) | 24 V DC | Rated Frequency (f) | DC |
| Output Power | 480 W | Output Voltage (Uout) | 24 V DC |
| Output Current | 20 A | Degree of Protection | Housing IP20 Terminals IP20 |
| Pollution Degree | 2 | Connecting Capacity Input Circuit | Flexible with Ferrule 0.2 ... 4 mm² Flexible 0.2 ... 4.0 mm² Rigid 0.2 ... 6 mm² |
| Connecting Capacity Output Circuit | Flexible with Ferrule 0.2 ... 4 mm² Flexible 0.2 ... 4.0 mm² Rigid 0.2 ... 6 mm² | Wire Stripping Length | Input Circuit 7 mm Output Circuit 7 mm |
| Minimum Mounting Distance | Other Device Same Type, Vertical 80 mm | Mounting Position | 1 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | Standards | CAN/CSA C22.2 No.107.1 IEC/EN 63000 EN 55011 IEC/EN 61000-6-2 IEC/EN 61000-6-4 IEC/EN 62040-2 UL 508 |
| Connecting Capacity Input Circuit UL/CSA | Flexible with Ferrule 24-12 AWG Flexible 24-12 AWG Rigid 24-10 AWG | Connecting Capacity Output Circuit UL/CSA | Flexible with Ferrule 24-12 AWG Flexible 24-12 AWG Rigid 24-10 AWG |
| Ambient Air Temperature | Operation -40 ... +60 °C Storage -40 ... +60 °C | Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Object Classification Code | C | ETIM 7 | EC002540 - DC-power supply |
| ETIM 8 | EC002540 - DC-power supply | ETIM 9 | EC002540 - DC-power supply |
| eClass | V11.0 : 27040701 | UNSPSC | 39121004 |
| E-Number (Finland) | 2712389 | E-Number (Norway) | 6609482 |
| Manufacturer ID | 1SVR427060R2000 |
Specifications may be subject to change without notice
