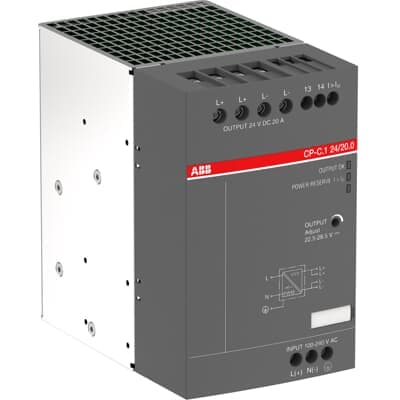

CP-C.1 24/20.0-C
Product ID:87535
Updated: 2026/7/14
Key Features
- 1Achieve high efficiency up to 94% for optimal performance.
- 2Ensure reliability with overheat protection and active power factor correction.
- 3Adjust output voltage from 22.5 to 28.5 V DC.
- 4Handle heavy loads with an integrated 30% power reserve.
- 5Deploy globally with extensive approvals and a robust metallic housing.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 82 mm | Product Net Height | 129.4 mm |
| Product Net Depth / Length | 136 mm | Product Net Weight | 1.59 kg |
| Function | Switch mode power supply | Number of Phases | 1 |
| Rated Input Voltage (UIN) | 100 ... 240 V AC 90 ... 300 V DC | Input Voltage (Uin) | 85 ... 264 V AC 90 ... 300 V DC |
| Typical Input Current | (115 V AC) 4.6 A (230 V AC) 2.3 A | Hold-up Time | (230 V AC) min. 40 ms |
| Rated Frequency (f) | 50 / 60 Hz | Rated Frequency Limits | 45 ... 65 Hz |
| Characteristic of Output | U/I characteristic curve with power reserve | Rated Output Power | 480 W |
| Output Power | 480 W | Rated Output Voltage | 24 V DC |
| Output Voltage (Uout) | 24 V DC | Rated Output Current | -25 °C ... +60 °C 20 A -40 °C ... +40 °C 26 A |
| Output Current | 20 A | Output Current Maximum (Iout) | 26 A |
| Rated Impulse Withstand Voltage (Uimp) | Input Circuit / Output Circuit 4 kV Input Circuit / PE 4 kV Input Circuit / Relay Contact 4 kV Output Circuit / PE 0.5 kV Output Circuit 0.5 kV | Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 300 V Input Circuit / PE 300 V Input Circuit / Relay Contact 300 V Output Circuit / PE 50 V |
| Degree of Protection | Housing IP20 Terminals IP20 | Pollution Degree | 2 |
| Connecting Capacity Input Circuit | Flexible with Ferrule 0.5 ... 2.5 mm² Flexible 0.5 ... 2.5 mm² Rigid 0.5 ... 4 mm² | Connecting Capacity Output Circuit | Flexible with Ferrule 2.5 ... 10 mm² Flexible 2.5 ... 10 mm² Rigid 2.5 ... 16 mm² |
| Tightening Torque | Auxiliary Circuit 0.5 N·m Input Circuit 0.5 N·m Output Circuit 1.2 N·m | Wire Stripping Length | Auxiliary Circuit 8 mm Input Circuit 8 mm Output Circuit 10 mm |
| Recommended Screw Driver | Input Circuit / Output Circuit PH1 Input Circuit / Output Circuit 0.8 x 4 | Minimum Mounting Distance | Electrical Conductive Board, Horizontal 25 mm Electrical Conductive Board, Vertical 25 mm Other Device Same Type, Horizontal 25 mm Other Device Same Type, Vertical 25 mm |
| Mounting Position | Position 1 7 | Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards | CAN/CSA C22.2 No.107.1 IEC/EN 63000 IEC/EN 60079-0 IEC/EN 60079-15 IEC/EN 60079-7 IEC/EN 61000-6-2 IEC/EN 61000-6-3 IEC/EN 61204 UL 508 UL 61010-1 UL 61010-2-201 IEC/EN 61010-1 | Connecting Capacity Input Circuit UL/CSA | Flexible with Ferrule 20-12 AWG Flexible 20-12 AWG Rigid 20-10 AWG |
| Connecting Capacity Output Circuit UL/CSA | Flexible 12-8 AWG Rigid 12-6 AWG | Tightening Torque UL/CSA | Input Circuit 4.4 in·lb Output Circuit 10.5 in·lb |
| Ambient Air Temperature | Operation -40 ... +70 °C Storage -40 ... +85 °C | Maximum Operating Altitude Permissible | 5000 m |
| Resistance to Damp Heat acc. to IEC 60068-2-30 | Test Db: 55°C, 2 cycles | Resistance to Shock acc. to IEC 60068-2-27 | 30g 3 shocks 6 ms |
| Resistance to Vibrations | ±0.15 mm 10 ... 58 Hz 10 Sweep Cycles Each Axis: 2g 58 ... 150 Hz | Object Classification Code | T |
| ETIM 7 | EC002540 - DC-power supply | ETIM 8 | EC002540 - DC-power supply |
| ETIM 9 | EC002540 - DC-power supply | eClass | V11.0 : 27040701 |
| UNSPSC | 39121004 | E-Number (Finland) | 2712545 |
| E-Number (Norway) | 6609433 | Manufacturer ID | 1SVR360763R2001 |
Specifications may be subject to change without notice
