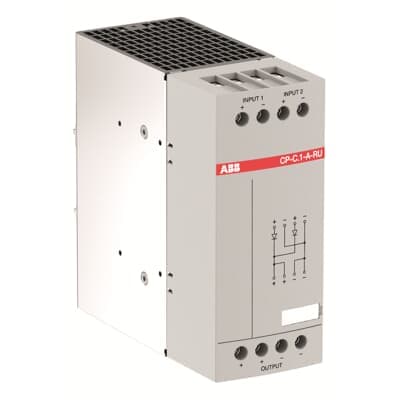

CP-C.1-A-RU-L
Product ID:70343
Updated: 2026/4/3
Key Features
- 1Achieve true redundancy via 100% decoupling of parallel power supplies. 2、Combine two 20A inputs for a robust 40A output. 3、Enhance system availability and operational reliability. 4、Utilize a compact design measuring 56.4x129.4x136 mm. 5、Meet IEC/EN 63000, IEC/EN 61000-6-2, and UL 61010-1 standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 56.4 mm | Product Net Height | 129.4 mm |
| Product Net Depth / Length | 136 mm | Product Net Weight | 1.04 kg |
| Function | Redundancy unit | Rated Input Voltage (UIN) | 12 ... 48 V DC |
| Input Voltage (Uin) | 10 ... 58 V DC | Rated Frequency (f) | DC |
| Rated Output Voltage | 12 ... 48 V DC | Output Voltage (Uout) | 10 ... 58 V DC |
| Rated Output Current | 40 A | Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 60 V |
| Degree of Protection | Housing IP20 Terminals IP20 | Pollution Degree | 2 |
| Connecting Capacity Input Circuit | Flexible with Ferrule 2.5 ... 10 mm² Flexible 2.5 ... 10 mm² Rigid 2.5 ... 16 mm² | Connecting Capacity Output Circuit | Flexible with Ferrule 2.5 ... 10 mm² Flexible 2.5 ... 10 mm² Rigid 2.5 ... 16 mm² |
| Tightening Torque | Input Circuit 1.2 N·m Output Circuit 1.2 N·m | Wire Stripping Length | Input Circuit 10 mm Output Circuit 10 mm |
| Recommended Screw Driver | Input Circuit / Output Circuit 0.8 x 4 | Minimum Mounting Distance | Electrical Conductive Board, Horizontal 25 mm Electrical Conductive Board, Vertical 25 mm Other Device Same Type, Horizontal 25 mm Other Device Same Type, Vertical 25 mm |
| Mounting Position | Position 1 7 | Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards | IEC/EN 63000 IEC/EN 61000-6-2 IEC/EN 61000-6-3 IEC/EN 61204 UL 61010-2-201 UL 61010-1 IEC/EN 61010-1 | Connecting Capacity Input Circuit UL/CSA | Flexible 12-8 AWG Rigid 12-6 AWG |
| Connecting Capacity Output Circuit UL/CSA | Flexible 12-8 AWG Rigid 12-6 AWG | Tightening Torque UL/CSA | Input Circuit 10.5 in·lb Output Circuit 10.5 in·lb |
| Ambient Air Temperature | Operation -25 ... +70 °C Storage -40 ... +85 °C | Maximum Operating Altitude Permissible | 5000 m |
| Resistance to Damp Heat acc. to IEC 60068-2-30 | Test Db: 55°C, 2 cycles | Resistance to Shock acc. to IEC 60068-2-27 | 30g 3 shocks 6 ms |
| Resistance to Vibrations | ±0.15 mm 10 ... 58 Hz 10 Sweep Cycles Each Axis: 2g 58 ... 150 Hz | Object Classification Code | T |
| ETIM 7 | EC002540 - DC-power supply | ETIM 8 | EC002540 - DC-power supply |
| ETIM 9 | EC002540 - DC-power supply | eClass | V11.0 : 27040701 |
| UNSPSC | 39121004 | Manufacturer ID | 1SVR361060R1001 |
