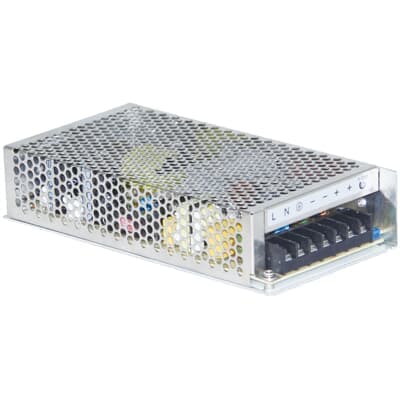

CP-PX 24/6.5
Product ID:93147
Updated: 2026/7/14
Key Features
- 1Deliver high efficiency with a wide 90-264VAC input voltage range.
- 2Ensure protection against environmental factors with a durable IP20 housing.
- 3Provide stable 24V DC output for industrial automation applications.
- 4Save space with a compact 10X10X10 cm miniature design.
- 5Meet international safety and emissions standards including IEC/EN 63000.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 41.5 mm | Product Net Height | 98 mm |
| Product Net Depth / Length | 199 mm | Product Net Weight | 0.62 kg |
| Function | Switch mode power supply | Number of Phases | 1 |
| Rated Input Voltage (UIN) | 115 / 230 V AC | Input Voltage (Uin) | 90 ... 132 V AC 180 ... 264 V AC |
| Hold-up Time | (230 V AC) min. 20 ms | Rated Frequency (f) | 50 / 60 Hz |
| Rated Frequency Limits | 47 ... 63 Hz | Characteristic of Output | Hiccup-mode |
| Rated Output Power | 150 W | Output Power | 150 W |
| Rated Output Voltage | 24 V DC | Output Voltage (Uout) | 24 V DC |
| Rated Output Current | -20 °C ... +50 °C 6.5 A | Output Current | 6.5 A |
| Output Current Maximum (Iout) | 6.5 A | Rated Impulse Withstand Voltage (Uimp) | Input Circuit / Output Circuit 1.5 kV Input Circuit / PE 1.5 kV |
| Degree of Protection | Housing IP20 | Pollution Degree | 1 |
| Connecting Capacity Input Circuit | Rigid 0.3 ... 4 mm² | Connecting Capacity Output Circuit | Rigid 0.3 ... 4 mm² |
| Tightening Torque | Input Circuit 1.2 N·m Output Circuit 1.2 N·m | Wire Stripping Length | Input Circuit 10 mm Output Circuit 10 mm |
| Minimum Mounting Distance | Other Device Same Type, Horizontal 25 mm Other Device Same Type, Vertical 25 mm | Mounting on DIN Rail | No |
| Standards | IEC/EN 63000 EN 55024 EN 55032 IEC 60950-1 | Ambient Air Temperature | Operation -20 ... +70 °C Storage -40 ... +85 °C |
| Object Classification Code | T | ETIM 7 | EC002540 - DC-power supply |
| ETIM 8 | EC002540 - DC-power supply | ETIM 9 | EC002540 - DC-power supply |
| eClass | V11.0 : 27040701 | UNSPSC | 39121004 |
| Manufacturer ID | 1SVR427091R0050 |
Specifications may be subject to change without notice
